Hanging sprout trainer
Key Attributes
Age Group
18+
Area of Use
Trim Paths
Activity
Sport
Suitable for
Suitable for
adult
trim trails etc.
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
5.05 m
Total Width
1.10 m
Total Height
2.55 m
Minimum Space Length
8.05 m
Minimum Space Width
5.05 m
Minimum Space Height
2.55 m
Heaviest Single Piece
45.00 kg
(Total) Weight
165.00 kg
Free Height of Fall
2.50 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
1 piece - 1.20 x 0.50 x 0.60 m volume: 0.36 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Floor area: 1.10 x 5.05 m
Minimum space: 5.05 x 8.05 m (39 m²)
Rung spacing: 0.30 m
Total height: 2.55 m
Weight: 45 kg heaviest individual part
165 kg in total

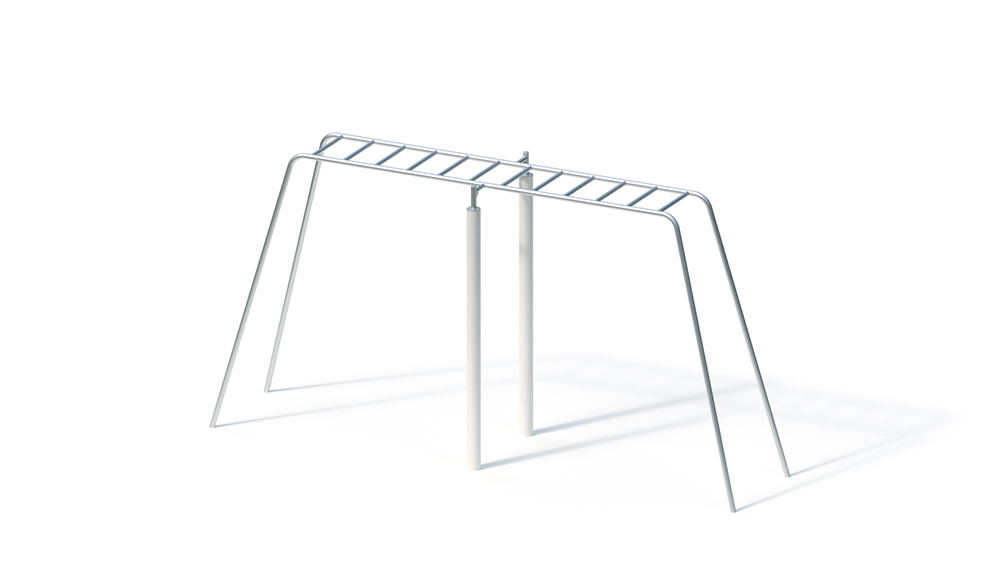

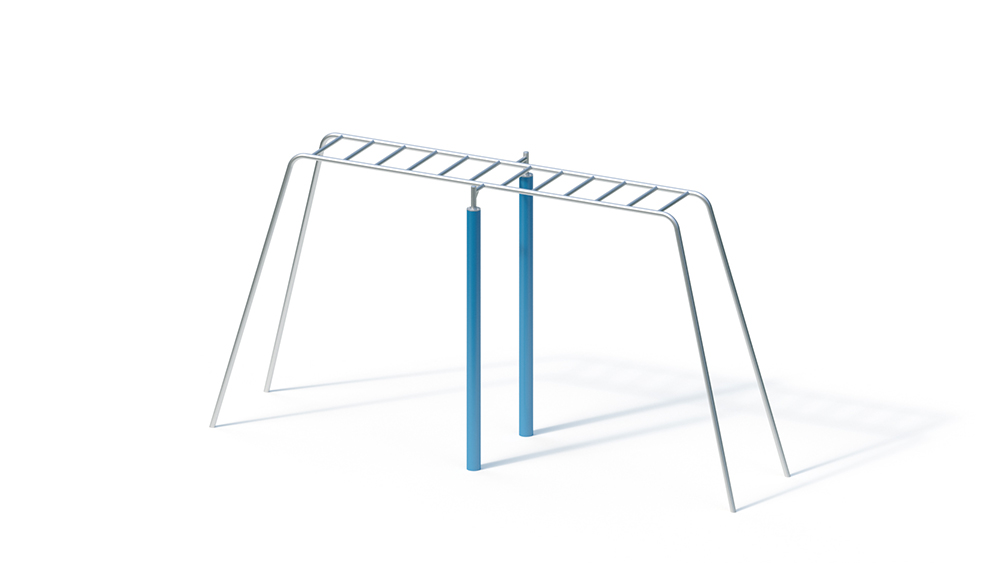

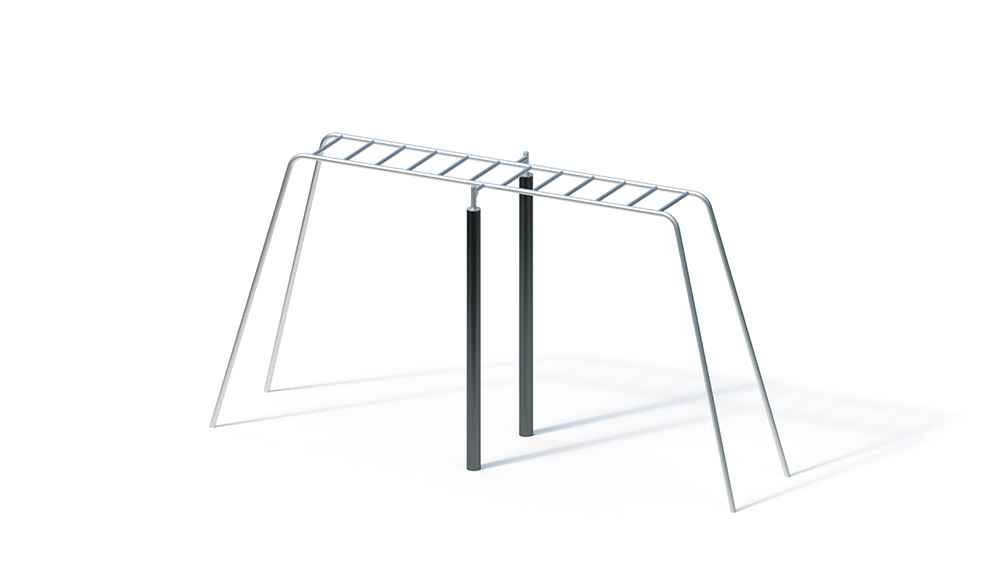

Post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated. Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005. Metal components
: Stainless steel
station sign (see item no. 0-57403-000) can be supplied at an extra charge.
Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 1.20 x 0.50 x 0.60 m
Amount of concrete: 0.62 m³
Free fall height
2.50 m
