0-53182-700

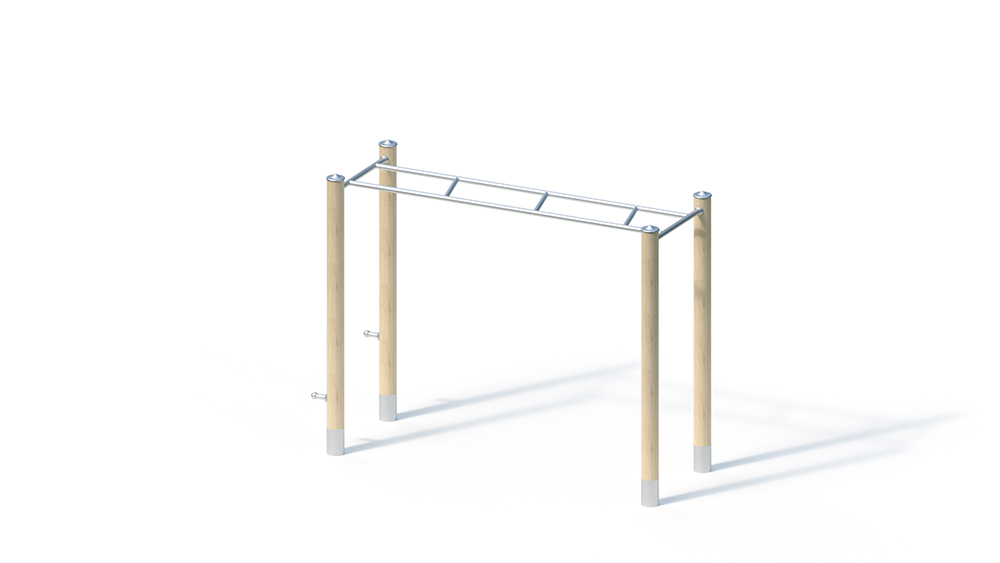

Hang ladder (1.90)

Key Attributes

Age Group

8+

Area of Use

Public Playgrounds

Activity

Sport

Suitable for

Suitable for
children from 8 years,
public playgrounds etc.,
sporting activities

Techincal Specifications

Lifting Device

-

Total Length

2.65 m

Total Width

0.95 m

Total Height

2.05 m

Minimum Space Length

6.25 m

Minimum Space Width

4.55 m

Minimum Space Height

2.05 m

Heaviest Single Piece

25.00 kg

(Total) Weight

115.00 kg

Free Height of Fall

1.92 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 1.20 x 0.40 x 0.60 m volume: 0.29 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 0.95 x 2.65 m
Minimum space: 4.55 x 6.25 m (27 m²)
Total height: 2.05 m
Height of hanging ladder: 1.90 m
Weight: 25 kg Heaviest individual part
115 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachments
– Hangelleiter stainless steel pipe
– Uphill stainless steel tube with a spherical degree

Metal components: stainless steel 1.4301
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
2 pcs. 0.40 x 1.20 x 0.60 m
Amount of concrete: 0.58 m³

Free fall height
1.92 m
