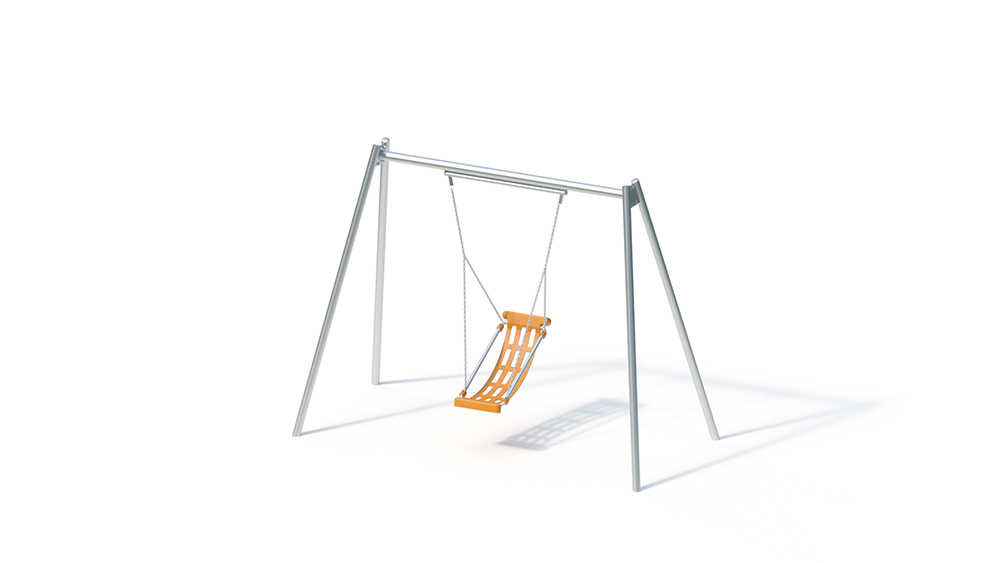

Handicap swing (2.50)

Key Attributes

Age Group


Area of Use

supervised playgrounds



Suitable for

Suitable for
children from 3 years of age,
supervised playgrounds etc.,
exercise activities

Techincal Specifications

Lifting Device


Total Length

1.73 m

Total Width

3.70 m

Total Height

2.71 m

Minimum Space Length

7.51 m

Minimum Space Width

3.70 m

Minimum Space Height

2.71 m

Heaviest Single Piece

32.00 kg

(Total) Weight

135.00 kg

Free Height of Fall

1.66 m

Platform Heights



Foundation 1

4 pieces - 0.60 x 0.60 x 0.47 m volume: 0.17 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical Data

Technical data
Important note:
The minimum space and the floor space have changed!
Base area: 1.73 x 3.70 m
Minimum space: 7.51 x 3.70 m
Swing height: 2.50 m
Weight: 32 kg, heaviest individual part
135 kg in total

– Rocking supports made of stainless steel tube Ø 76 mm, wall thickness 2.9 mm; Connection to swing carrier via connection
plates – swing carrier made of stainless steel tube Ø 88.9 mm, wall thickness 3.2 mm; Connection to
rocker supports via connection plates – swing axis made of stainless steel, consisting of internal bearing axis Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and slide bearings, chain attachment with clamping adapter made of stainless steel
– trapezoidal chain suspension , set for an upright sitting position, consisting of Stainless steel chains Ø 7 mm, with integrated, ball-bearing swivel to prevent the chains from becoming knotted
– Boat swing seat, tested according to EN 1176-1 / -2, with the ability to hold the body for people with limited balance, ability to grip or coordination, consisting of synthetic rubber molded part in cradle shape with shock-absorbing damping zones and steel wire insert Ø 4 mm to reinforce and prevent cracks, circumferential Seat frame made of corrosion-resistant stainless steel tube Ø 35 mm, wall thickness 1.5 mm, with 4 connections for 7 mm chain

Foundations (on site)
4 pcs. 0.60 x 0.60 x 0.47 m

Free fall height
1.66 m
