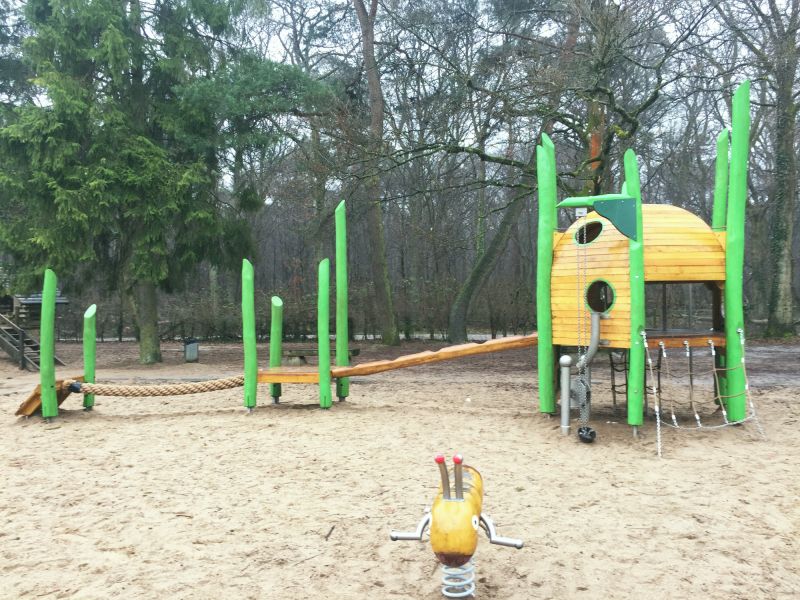

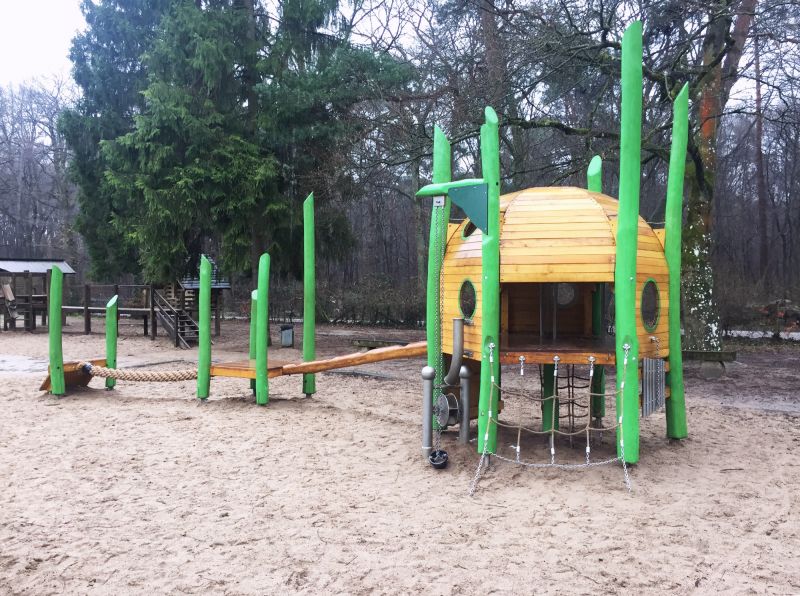

Forrest Ant Hill “Nature”
Forrest Ant Hill – Nature
Order Number: SK-160909-91
Posts constructed from stainless steel
Wood: Robinia
– One dome-shaped hexagonal tower with a stainless steel hood and four peepholes measuring ø 2×50 /1×40/ 1x25cm, featuring six robinia posts pointing outwards, along with one central robinia post.
– One platform with a diameter of 230cm and a height of 100cm, equipped with an opening and stainless steel fall protection.
– One net tunnel with an approximate diameter of 60cm, made from Hercules rope.
– One stainless steel climbing pole.
– One climbing net made from Hercules rope.
– One chime consisting of eight different large stainless steel chimes, each with two chains.
– One sand crane with a stainless steel chain and rubber bucket.
– One sand funnel with a diameter of 10cm and a length of approximately 300cm.
– Two boarded up walls located below the platform.

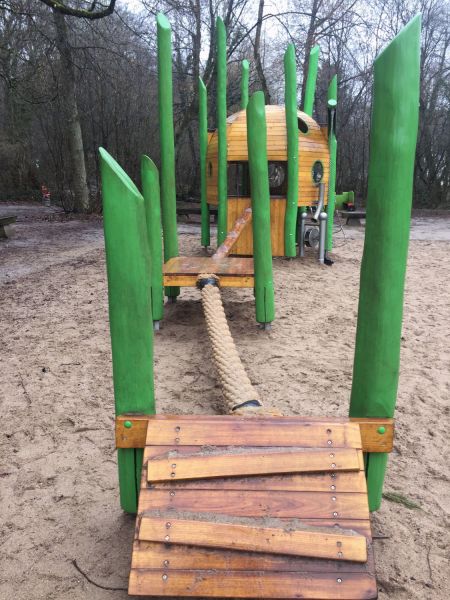

– One balance beam with a length of approximately 300cm.
– One squared framework measuring 100x100cm and a height of 50cm, featuring posts made from robinia.
– One running rope made from polypropylene (PP) with a length of approximately 300cm, including a starting frame with robinia posts.
– One climbing ramp with a height of approximately 50cm and a width of approximately 100cm.
Made in Germany!
All posts are made from robinia, naturally grown, de-splinted, and sanded. The visible ends of the posts are conclusively welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection regulations.
All wooden parts are made from Robinia, planed, and chamfered. All wooden parts are untreated.
The connection between the platform/railing and support posts is achieved through stainless steel press-in threaded sleeves.
The platform is fixed using concentrically incorporated stainless steel brackets.
The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensible stainless steel chains.
The nets are made from Hercules rope. All connecting parts are made from stainless steel or galvanized. Only self-locking nuts are used.
Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not warrant a warranty claim. (Refer to the supplementary sheet for the German Institute for Standardization EN 1176, Note on 4.2.7.6)
Spiel-Bau GmbH
Alte Weinberge 21
14776 Brandenburg an der Havel
Phone: 03381 26140
Fax: 03381 261418
Technical Information
Area
630 x 1290 cm
Fall Height Group
100 cm
Materials
Material
stainless steel, wood
