0-57130-001

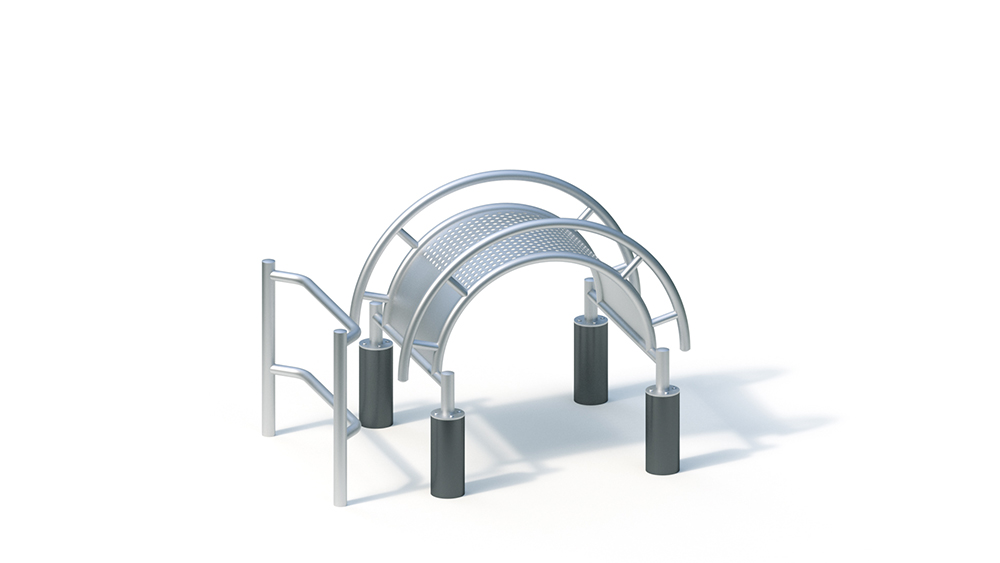

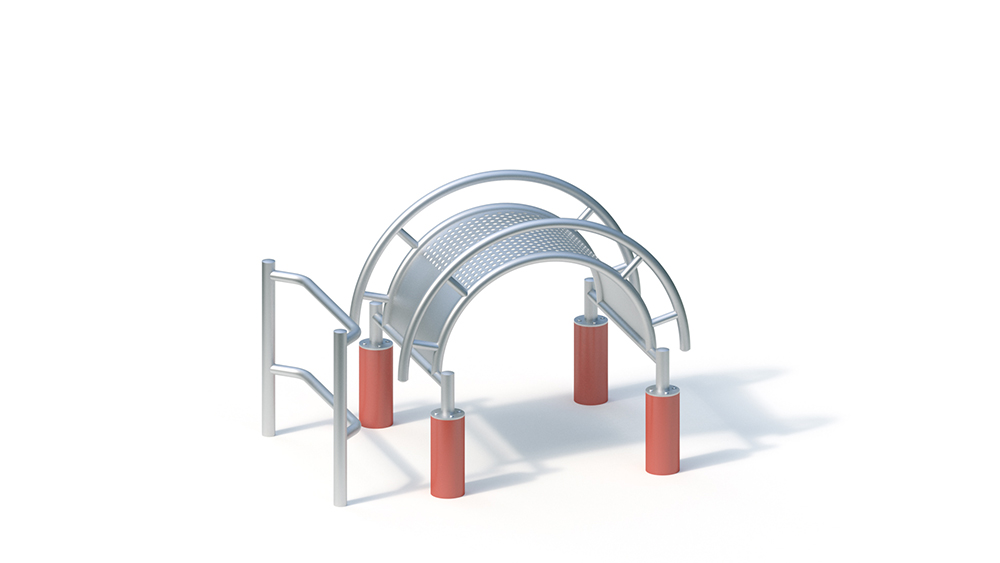

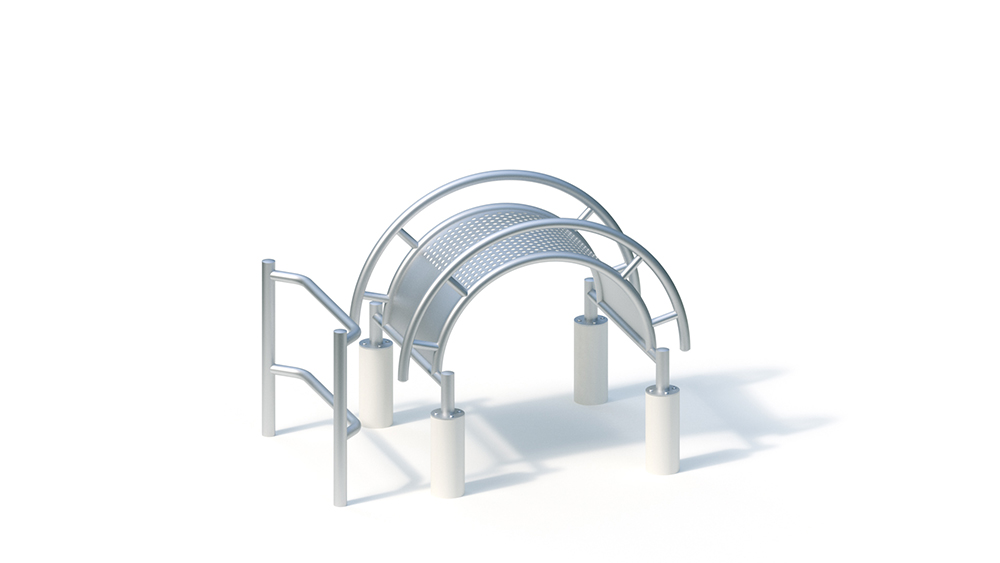

Floating seat trainer

Key Attributes

Age Group

18+

Area of Use

Trim Paths

Activity

Sport

Suitable for

Suitable for
adult
trim trails etc.
sporting activities

Techincal Specifications

Lifting Device

-

Total Length

1.45 m

Total Width

0.95 m

Total Height

0.95 m

Minimum Space Length

4.45 m

Minimum Space Width

3.95 m

Minimum Space Height

0.95 m

Heaviest Single Piece

30.00 kg

(Total) Weight

100.00 kg

Free Height of Fall

0.80 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

2 pieces - 0.70 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 0.95 x 1.45 m
Minimum space: 3.95 x 4.45 m (16 m²)
Total height: 0.95 m
Weight: 30
kg Heaviest single part 100 kg in total

Post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated. Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005. Metal components
: stainless steel
perforated sheet , stainless steel station sign (see item no. 0-57415-000) can be supplied at an extra charge.

Foundations (on site)
2 pcs. 0.40 x 0.40 x 0.40 m
2 pieces. 0.70 x 0.40 x 0.40 m
amount of concrete: 0.35 m³

Free fall height
0.80 m
