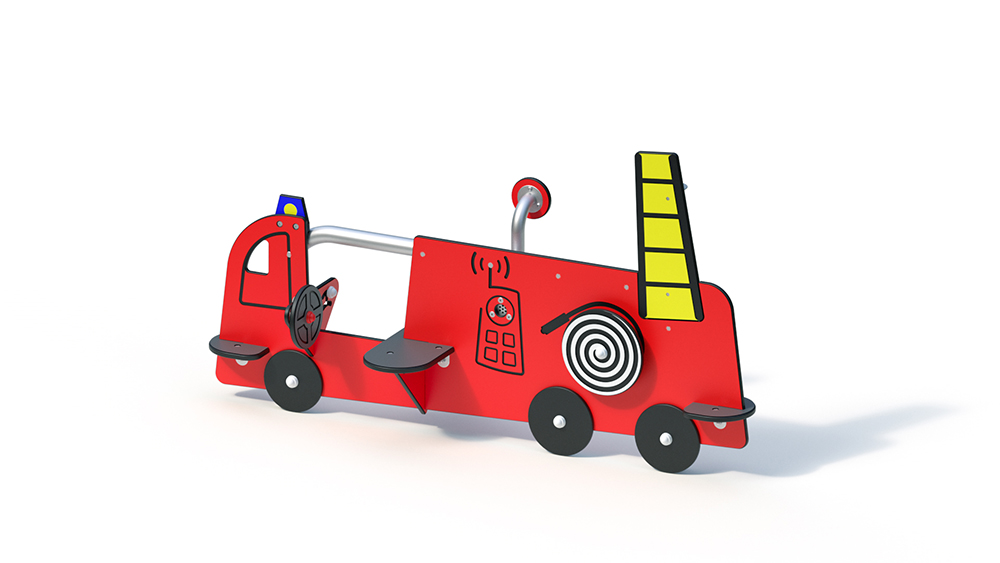

Fire truck
Key Attributes
Age Group
1 - 6+
Area of Use
Public Playgrounds
Activity
Social
Suitable for
Suitable for
children aged 1 – 6,
public playgrounds, etc.
Exercise / social activities
Techincal Specifications
Lifting Device
-
Total Length
0.50 m
Total Width
1.70 m
Total Height
0.95 m
Minimum Space Length
3.50 m
Minimum Space Width
4.70 m
Minimum Space Height
0.95 m
Heaviest Single Piece
35.00 kg
(Total) Weight
35.00 kg
Free Height of Fall
0.27 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.50 x 0.30 x 0.30 m volume: 0.05 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
The assembly time is delivered pre-assembled in one piece.
Technical Data
Technical data
Floor area: 0.50 x 1.70 m
Minimum space: 3.50 x 4.70 m (14 m²)
Total height: 0.95 m
Attachments
– welded tubular frame construction made of stainless steel Ø 48.3 x 2.5 mm
– Car incl steering wheel, effect wheel, head and benches colored, highly weather resistant HPL plate 13/15 mm.
– Telephone tube of stainless steel Ø 38 x 2 mm
Metal components: stainless steel.
Foundations (on site)
2 pcs. 0.50 x 0.30 x 0.30 m
amount of concrete: 0.09 m³
Free height of fall
0.27 m
