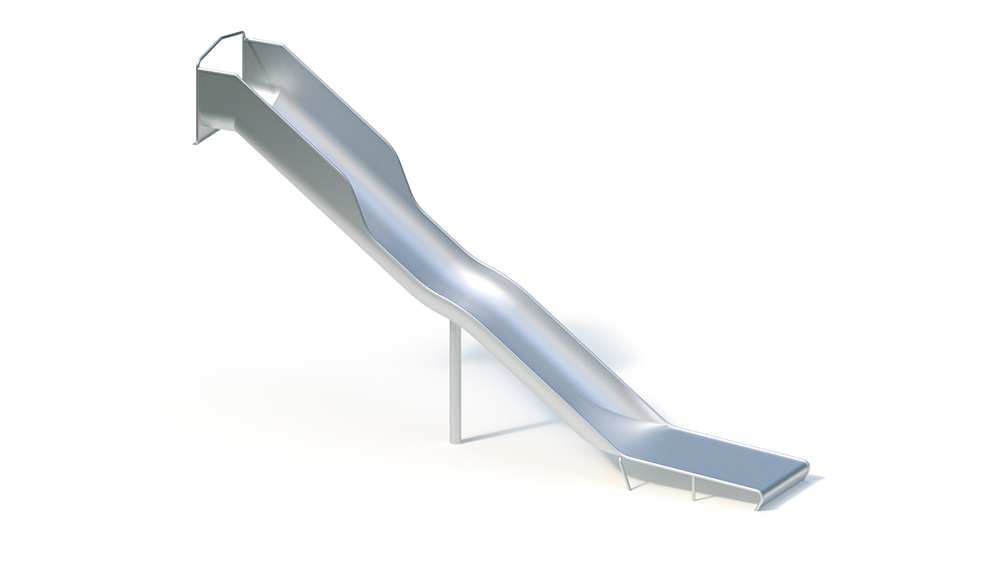

Extension wide slide (3.00)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds
exercise activities

Techincal Specifications

Lifting Device


Total Length

6.55 m

Total Width

1.10 m

Total Height

4.00 m

Minimum Space Length

5.95 m

Minimum Space Width

10.00 m

Minimum Space Height

4.60 m

Heaviest Single Piece

340.00 kg

(Total) Weight

340.00 kg

Free Height of Fall

3.00 m

Platform Heights



Foundation 1

1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 2

1 piece - 1.40 x 1.25 x 0.40 m volume: 0.70 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers


Assembly Time


Assembly Details

Assembly time is delivered in one piece (without foundation creation)

Technical Data

Technical data
Base area: 1.10 x 6.55 m
Minimum space: 5.95 x 10.00 m Extension
height: 3.00 m
Sitting height: 3.10 m Slide inclination
: 36 ° Slide width
: 1.10 m
Slide plate thickness : 2.5 mm
Weight: 340 kg in total

One-piece stainless steel construction, maxi seat, with additional support in the outlet area. Speed ​​regulation by shaft. Particularly quiet thanks to the shape of the trough. Please note that in the area of ​​the flange on the slide seat there must be a surface suitable for flanging (wooden platform or planks, concrete foundation, etc.) on site.

Including K&K slide support post for the shaft area and mounting flange. Each made of stainless steel.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundations (on site)
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 1.40 x 1.25 x 0.40 m
amount of concrete: 0.80 m³

Free fall height
max. 3.00 m
(terrain modeling is necessary below the seating area)
