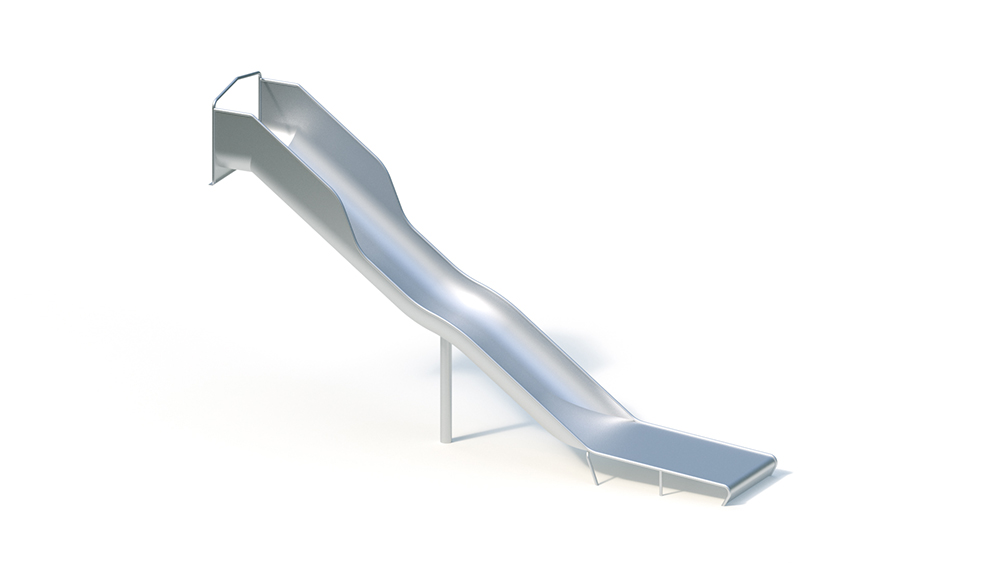

Extension wide slide (2.60)
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
Suitable for
children from 5 years,
public playgrounds
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
6.00 m
Total Width
1.10 m
Total Height
3.60 m
Minimum Space Length
9.45 m
Minimum Space Width
5.70 m
Minimum Space Height
4.20 m
Heaviest Single Piece
300.00 kg
(Total) Weight
300.0 kg
Free Height of Fall
2.70 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3
Foundation 2
1 piece - 1.40 x 1.25 x 0.40 m volume: 0.70 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
Assembly time is delivered in one piece (without foundation creation)
Technical Data
Technical data
Base area: 1.10 x 6.00 m
Minimum space: 5.70 x 9.45 m Extension
height: 2.60 m
Sitting height: 2.70 m Slide inclination
: 36 ° Slide width
: 1.10 m
Slide plate thickness : 2.5 mm
Weight: 300 kg in total
One-piece stainless steel construction, maxi seat, with additional support in the outlet area. Speed regulation by shaft. Particularly quiet thanks to the shape of the trough. Please note that in the area of the flange on the slide seat there must be a surface suitable for flanging (wooden platform or planks, concrete foundation, etc.) on site.
Including K&K slide support post for the shaft area and mounting flange. Each made of stainless steel.
For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.
Foundations (on site)
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 1.40 x 1.25 x 0.40 m
amount of concrete: 0.8 m³
Free fall height
max. 2.70 m
