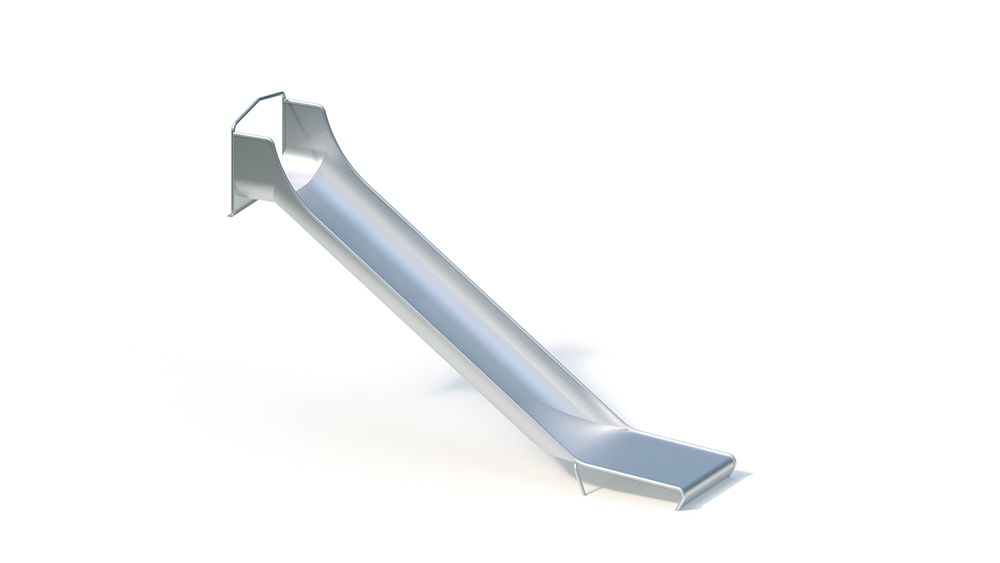

Extension wide slide (2.20)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds
exercise activities

Techincal Specifications

Lifting Device


Total Length

4.75 m

Total Width

1.10 m

Total Height

3.20 m

Minimum Space Length

8.25 m

Minimum Space Width

4.75 m

Minimum Space Height

3.80 m

Heaviest Single Piece

195.00 kg

(Total) Weight

195.00 kg

Free Height of Fall

2.30 m

Platform Heights



Foundation 1

1 piece - 1.25 x 0.90 x 0.40 m volume: 0.45 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers


Assembly Time


Assembly Details

Assembly time is delivered in one piece (without foundation creation)

Technical Data

Technical data
Base area: 1.10 x 4.75 m
Minimum space: 5.15 x 8.25 m Attachment
height: 2.20 m
Seat height: 2.30 m Slide incline
: 36 °
Slide plate thickness : 2.5 mm Slide width
: 1.10 m
Weight: 195 kg in total

One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the trough shape. Please note that there must be a suitable surface (wooden platform or planks, concrete foundation or similar) on site in the area of ​​the flange on the slide seat.

Including K&K slide support post for the shaft area and mounting flange. Each made of stainless steel.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.90 x 1.25 x 0.40 m
amount of concrete: 0.45 m³

Free height of fall:
max. 2.30 m
