Extension wide slide (1.60)

3+

Public Playgrounds

Slide

Suitable for
children from 3 years,
public playgrounds
exercise activities

-

3.50 m

1.10 m

2.60 m

7.00 m

4.35 m

3.20 m

145.00 kg

145.00 kg

1.70 m

-

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

-

-

-

-

-

-

-

Assembly time is delivered in one piece (without foundation creation)

Technical data
Base area: 1.10 x 3.50 m
Minimum space: 4.35 x 7.00 m Attachment
height: 1.60 m
Sitting height: 1.70 m Slide inclination
: 36 ° Slide width
: 1.10 m
Slide plate thickness : 2.5 mm
Weight: 145 kg in total

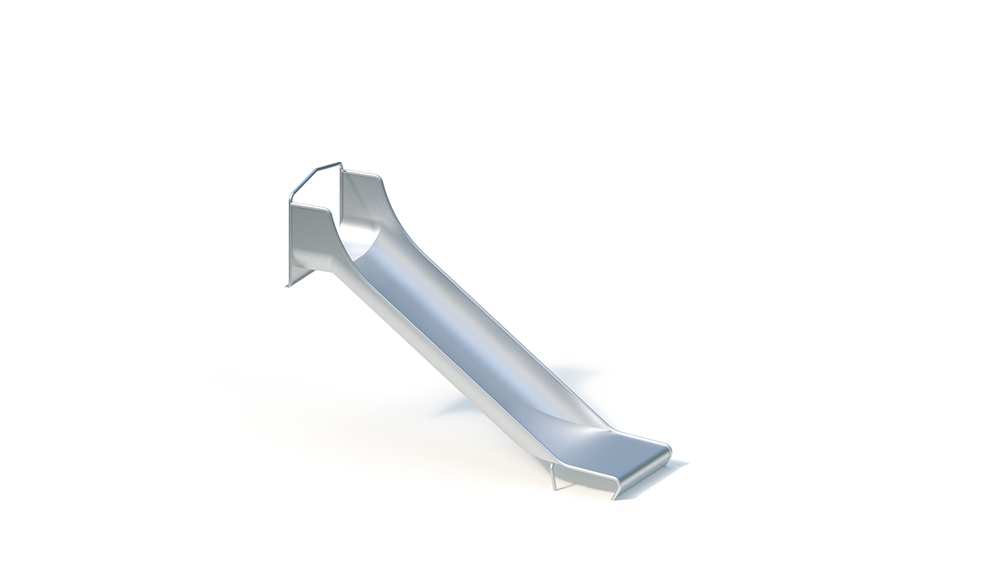

One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the shape of the trough. Please note that in the area of ​​the flange on the slide seat there must be a surface suitable for flanging (wooden platform or planks, concrete foundation, etc.) on site.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.40 x 1.25 x 0.40 m
Amount of concrete: 0.20 m³

Free height of fall
max. 1.70 m
