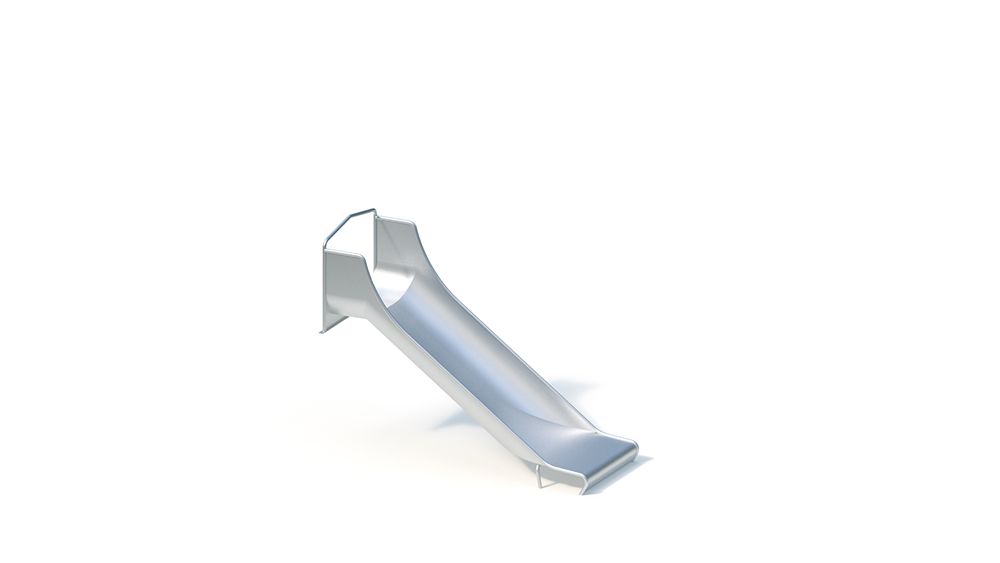

Extension wide slide (1.20)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 2 years,
public playgrounds
exercise activities

Techincal Specifications

Lifting Device


Total Length

2.75 m

Total Width

1.10 m

Total Height

2.20 m

Minimum Space Length

6.30 m

Minimum Space Width

4.10 m

Minimum Space Height

2.80 m

Heaviest Single Piece

115.00 kg

(Total) Weight

115.00 kg

Free Height of Fall

1.30 m

Platform Heights



Foundation 1

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers


Assembly Time


Assembly Details

Assembly time is delivered in one piece (without foundation creation)

Technical Data

Technical data
Base area: 1.10 x 2.75 m
Minimum space: 4.10 x 6.30 m Extension
height: 1.20 m
Sitting height: 1.30 m Slide inclination
: 36 ° Slide width
: 1.10 m
Slide plate thickness : 2.5 mm
Weight: 115 kg in total

One-piece stainless steel construction, with additional support in the outlet area. Particularly quiet thanks to the shape of the trough. Please note that in the area of ​​the flange on the slide seat, a suitable base (wooden platform or planks, concrete foundation, etc.) must be available on site.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.40 x 1.25 x 0.40 m
Amount of concrete: 0.20 m³

Free height of fall
max. 1.30 m
