0-37190-000

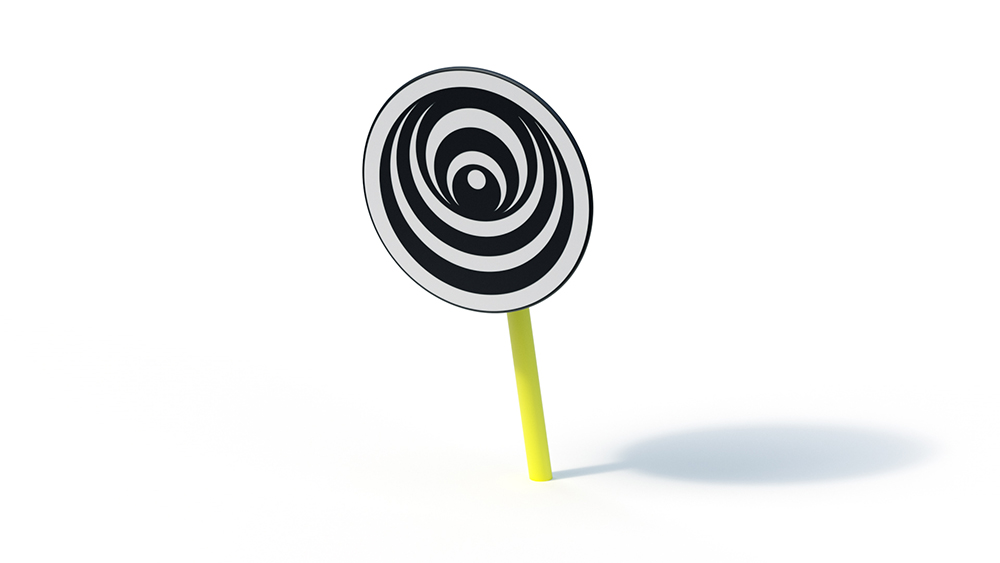

Effect disk
Key Attributes
Age Group
1+
Area of Use
Public Playgrounds
Activity
-
Suitable for
Suitable for
all age groups,
public playgrounds etc.
Techincal Specifications
Lifting Device
-
Total Length
1.20 m
Total Width
0.75 m
Total Height
2.20 m
Minimum Space Length
4.20 m
Minimum Space Width
3.75 m
Minimum Space Height
2.20 m
Heaviest Single Piece
-
(Total) Weight
130.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.90 x 0.70 x 0.60 m volume: 0.38 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Base: 0.75 x 1.20 m
Total height: 2.20 m
Disc Ø: 1.20 m
Weight: 130 kg in total
Standpipe: Steel construction, hot-dip galvanized, powder-coated, color: yellow / RAL 1021. Effect
disc: high-pressure laminate 25 mm, milled sickle motif forms a three-dimensional cone and funnel when rotated slowly.
Rolling bearings: and tamper-proof.
Foundation (on site)
1 pc. 0.90 x 0.70 x 0.60 m
