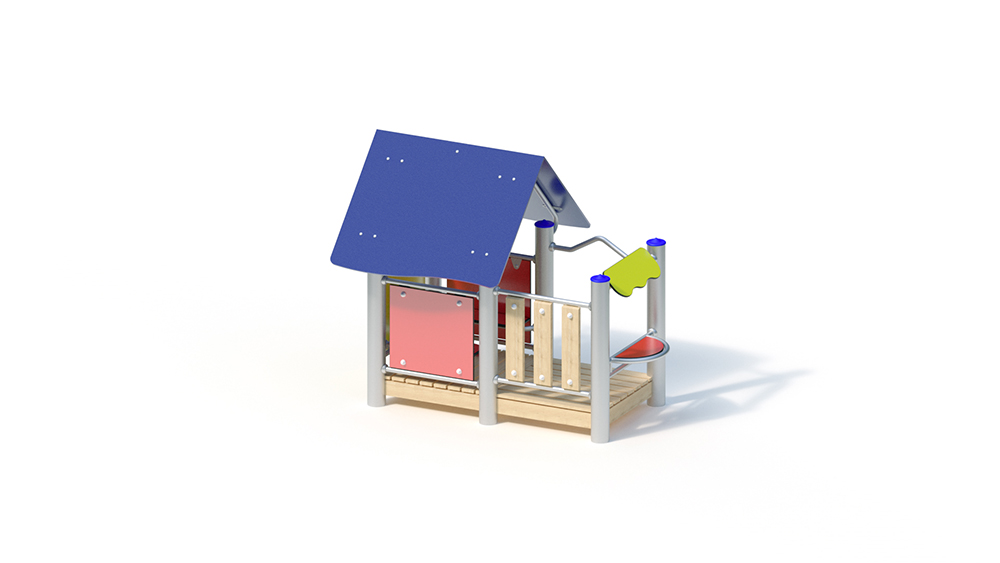

Drugstore
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Social
Suitable for
Suitable for
children from 2 years,
public playgrounds etc.,
social activities.
Techincal Specifications
Lifting Device
-
Total Length
1.45 m
Total Width
2.10 m
Total Height
1.75 m
Minimum Space Length
5.05 m
Minimum Space Width
4.40 m
Minimum Space Height
1.75 m
Heaviest Single Piece
30.00 kg
(Total) Weight
260.00 kg
Free Height of Fall
0.55 m
Platform Heights
0.20 m
Foundations
Foundation 1
6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Floor area: 1.45 x 2.05 m
Minimum space: 4.40 x 5.05 m (21 m²)
Total height: 1.75 m
Platform height: 0.20 m
Weight: 30 kg, heaviest individual part,
260 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attaching parts
– plate balustrade highly weather-resistant HPL laminate (red / yellow)
– wood balustrade locust, 125 mm x 30, attachment between stainless steel tubes Ø 33,7 x 2 mm
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Table / awning: made of highly weather-resistant HPL laminate board (red / yellow) 15 mm
– Seat: made of highly weather-resistant HPL laminate board (red), 20 mm
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
anchoring by ramming or
6 pcs. Foundations 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.38 m³
Free fall height
0.55 m
