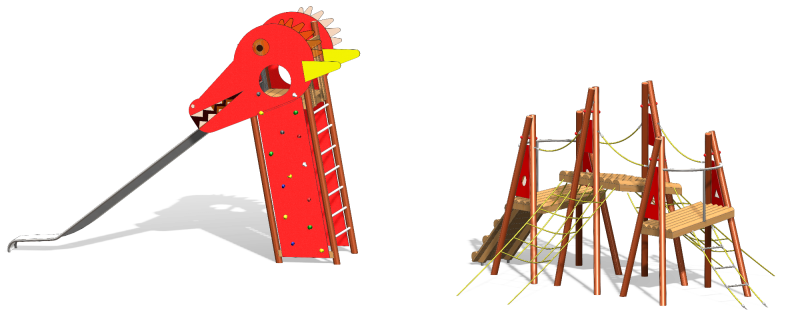

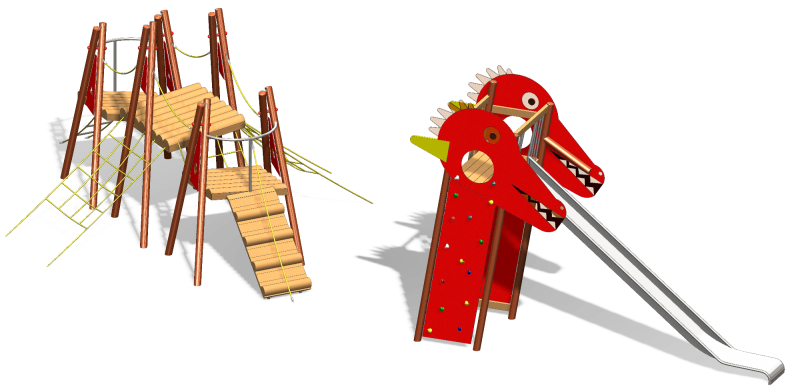

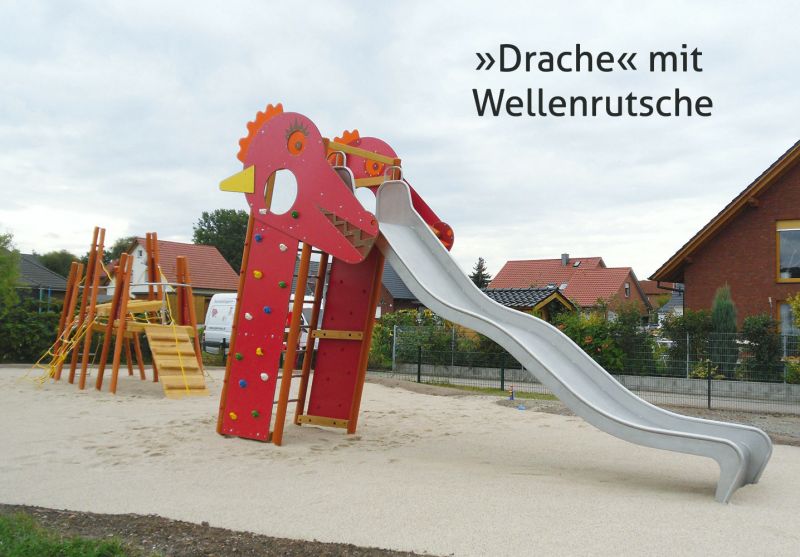

Dragon

Dragon

Dragon
Order Number: 8.0439-E
Posts made of stainless steel
Wood: Robinia

Head:
– Inclined squared framework, measuring 90x127cm, with a height of 250cm
– 1 box-shaped Spiel-Bau slide, with a height of 250cm
– 2 climbing walls made of HPL (red color)
– 1 wall bar
– 2 balustrades with openings
– 2 dragon heads made of HPL (red color)
– Eyes and teeth made of plexiglass
– Ears made of yellow HPL

Body:
– 6 A-posts made of stainless steel
– 4 openings made of plexiglass
– 2 inclined podiums, measuring 90x120cm, with a height of 120cm
– 1 inclined podium, measuring 90x120cm, with a height of 160cm
– 2 nets between the podiums
– 2 half-round handrails
– 1 ramp with safety rope, with a height of 120cm
– 1 rope ladder, with a height of 120cm
– 2 climbing nets made of Hercules rope

Made in Germany!
All support posts are made of stainless steel tubes with a diameter of 101.6mm.
The visible ends of the posts are conclusively welded to a stainless steel cap.
All stainless steel surfaces are radiated with glass marbles in accordance with environmental protection regulations.
The connection between the platform/railing and support posts is made through stainless steel press-in threaded sleeves.
All wooden parts are made of Robinia, planed and chamfered. All wooden parts are untreated.
The connection point between the net/rope and support posts is made through specifically formed stainless steel forks and tensible stainless steel chains.
All nets/ropes are made of Hercules rope. All connecting parts are made of stainless steel or galvanized. Only self-locking nuts are used.

Drying cracks are normal in all native hardwoods, even after appropriate storage and professional treatment. Therefore, drying cracks do not justify a warranty claim. (Refer to the supplementary sheet of the German Institute for Standardization EN 1176, Note on 4.2.7.6)
