0-44350-000

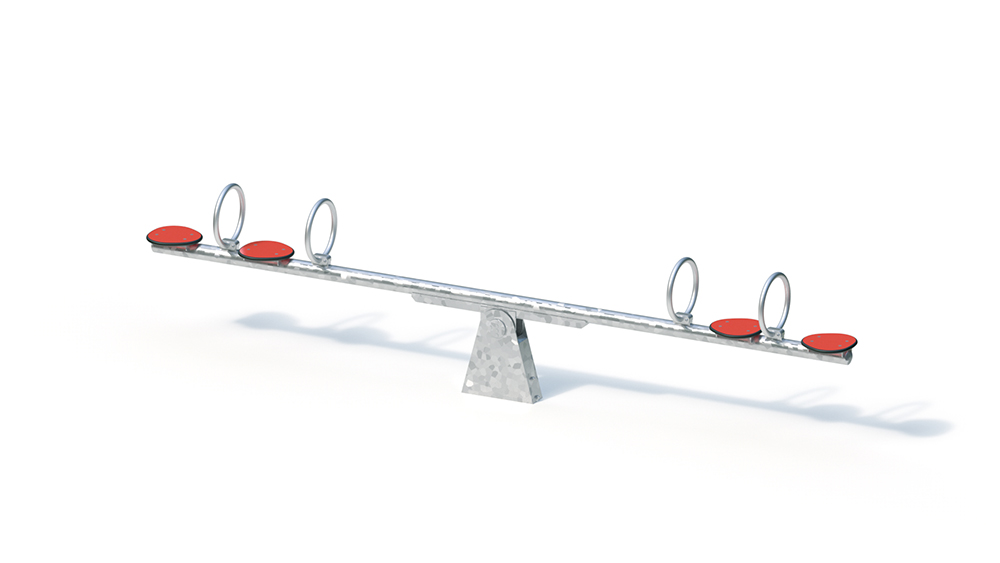

Double rocker bar

Key Attributes

Age Group

4+

Area of Use

Public Playgrounds

Activity

Physical Activity

Suitable for

Suitable for
children from 4 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device

-

Total Length

4.05 m

Total Width

0.35 m

Total Height

0.90 m

Minimum Space Length

6.06 m

Minimum Space Width

2.35 m

Minimum Space Height

0.90 m

Heaviest Single Piece

155.00 kg

(Total) Weight

166.00 kg

Free Height of Fall

1.10 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 0.90 x 0.60 x 0.60 m volume: 0.49 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters 0.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 0.35 x 4.05 m
Minimum space: 2.35 x 6.05 m (14 m²)
Rocker height: max. 1.05 m
Rocker beam: hot-dip galvanized steel tube Handle
: stainless steel tube
Seat
plate: high-pressure
laminate 20 mm sheet steel housing : hot-dip galvanized rocker mechanism made of vibration-damping rubber suspension. In addition, shock-absorbing thanks to parabolic rubber buffers. Self-lubricating slide bearings.
Weight: 155 kg heaviest single part
166 kg in total

Foundation (on site)
1 pc. 0.60 x 0.90 x 0.60 m
Amount of concrete: 0.32 m³

Free fall height
1.10 m
