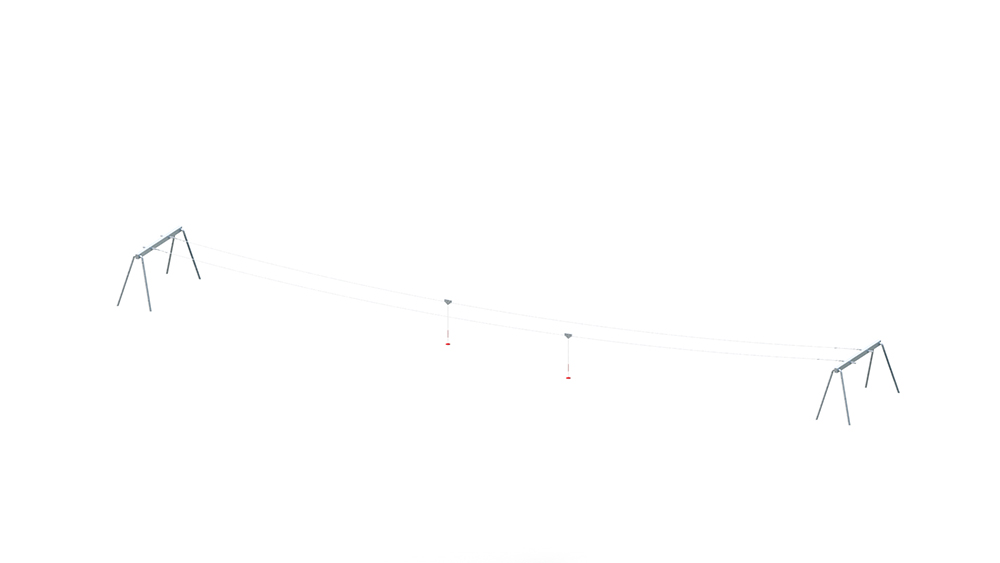

Double cable car (40.00)

Key Attributes

Age Group


Area of Use

Public Playgrounds


Physical Activity

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
physical activity

Techincal Specifications

Lifting Device


Total Length

42.00 m

Total Width

5.85 m

Total Height

2.70 m

Minimum Space Length

43.10 m

Minimum Space Width

6.00 m

Minimum Space Height

2.70 m

Heaviest Single Piece

245.00 kg

(Total) Weight

1350.00 kg

Free Height of Fall

1.00 m

Platform Heights



Foundation 1

8 pieces - 1.00 x 1.00 x 1.00 m volume: 1.00 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

5 h

Assembly Details

Assembly time 2 fitters each 5 hours (without foundation creation) + lifting gear

Technical Data

Technical data
Floor area: 5.85 x 42.00 m
Minimum space: 6.00 x 43.10 m (252 m²)
Cable car length : 40.00 m
Height of start station: 2.70 m (without hill)
Height of end station: 2.70 m (without hill)
Weight: 245 kg heaviest single part
1350 kg in total

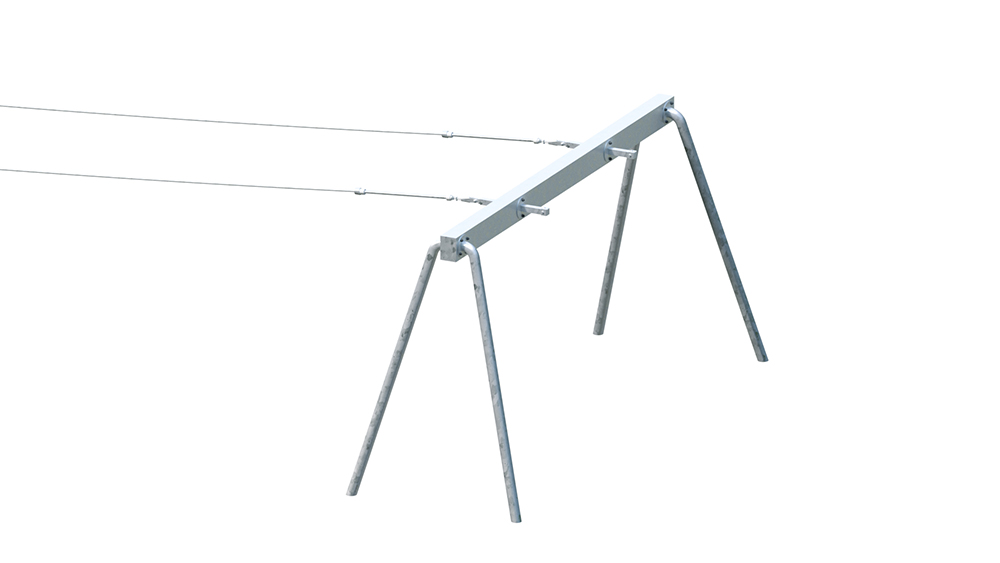

– Cable car girders made of hot-dip galvanized steel.
– Cable car support made of hot-dip galvanized steel tube, with dowel washer fastening Ø 240 mm.
– Rope fastenings with tensioning devices for problem-free, linear rope tensioning by means of a self-locking trapezoidal thread rod.
– Suspension ropes Ø 10 mm made of galvanized steel wire, with damping stops.
– Cable car made of stainless steel sheet with 3 roller-bearing polyamide rollers.
– Stainless steel chains with thermally pressed, flexible rubber handle and safety pendulum seats.
– Universal joint to minimize wear at the chain adapter-chain connection point.

The hill modeling for the starting station must be carried out after the cable car stations have been installed in accordance with the installation instructions. The rope tension required for the functionality of the cable car is only possible if the terrain is adapted according to our specifications.

The cable car ropes, including the cable car trolley, pendulum seat and handle chain, are delivered after the cable car has been assembled and the most precise measurements possible (a description of how to carry out the measurement is enclosed with the delivery).

Foundations (on site)
8 pcs. 1.00 x 1.00 x 1.00 m
amount of concrete: 8 m³

Free fall height
1.00 m
