0-33480-000

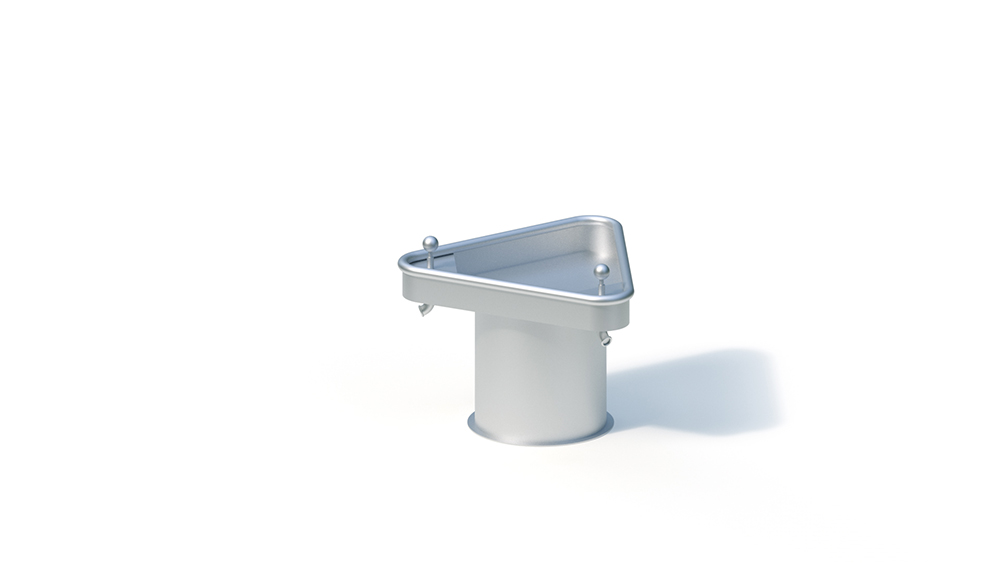

Distributing table (0,50)
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Social Activity
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
0.94 m
Total Width
0.85 m
Total Height
0.65 m
Minimum Space Length
3.94 m
Minimum Space Width
3.85 m
Minimum Space Height
0.65 m
Heaviest Single Piece
-
(Total) Weight
55.00 kg
Free Height of Fall
0.50 m
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
-
Technical Data
Technical data
Base area: 0.85 x 0.94 m
Total height: 0.65 m
Weight: 55 kg in total
Welded stainless steel construction with 2 water drainage pipes. Rubber cone closure with lock for complete water withdrawal. Sheet thickness: min. 2 mm / tube Ø 38 mm.
A suitable ring foundation (15166) for anchoring on the flange ring and shaped stones (15167) for building walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.
Free fall height
0.50 m
