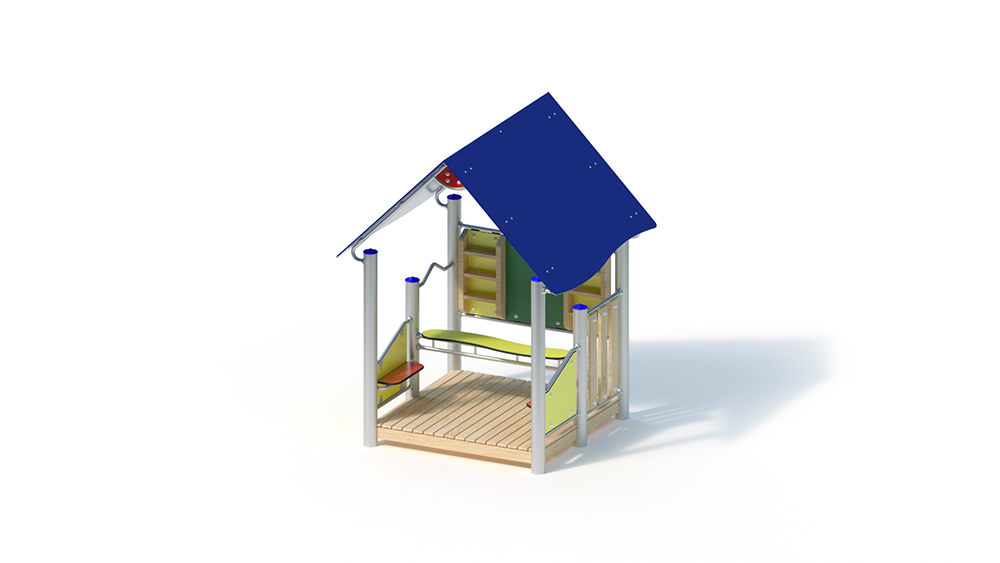

Department store
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Social
Suitable for
Suitable for
children from 2 years,
public playgrounds etc.
social activities.
Techincal Specifications
Lifting Device
-
Total Length
2.20 m
Total Width
2.00 m
Total Height
2.80 m
Minimum Space Length
5.20 m
Minimum Space Width
5.00 m
Minimum Space Height
1.65 m
Heaviest Single Piece
50.00 kg
(Total) Weight
340.00 kg
Free Height of Fall
0.55 m
Platform Heights
0.20 m
Foundations
Foundation 1
6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 2.5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 2.00 x 2.20 m
Minimum space: 5.00 x 5.20 m (24 m²)
Total height: 2.80 m
Platform height: 0.20 m
Weight: 50 kg, heaviest individual part,
340 kg in total
Support
posts Support posts made of stainless steel tube Ø 12 cm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachment parts
– wooden parapet made of robinia, 125 x 30 mm, attachment between stainless steel tubes Ø 33.7 x 2 mm
– panel balustrade made of highly weather-resistant HPL laminate board (yellow), attachment between stainless steel tubes Ø 33.7 x 2 mm
– shelf made of robinia 45 x 100 mm, planed, chamfered and free of rotten branches, rear wall made of highly weather-resistant HPL laminate board (green / yellow), 15 mm
– iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Seat: made of highly weather-resistant HPL laminate board (yellow), 20 mm
– Counter, wave-shaped, made of highly weather-resistant HPL laminate board (red), 20 mm
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.38 m³
Free fall height
0.55 m
