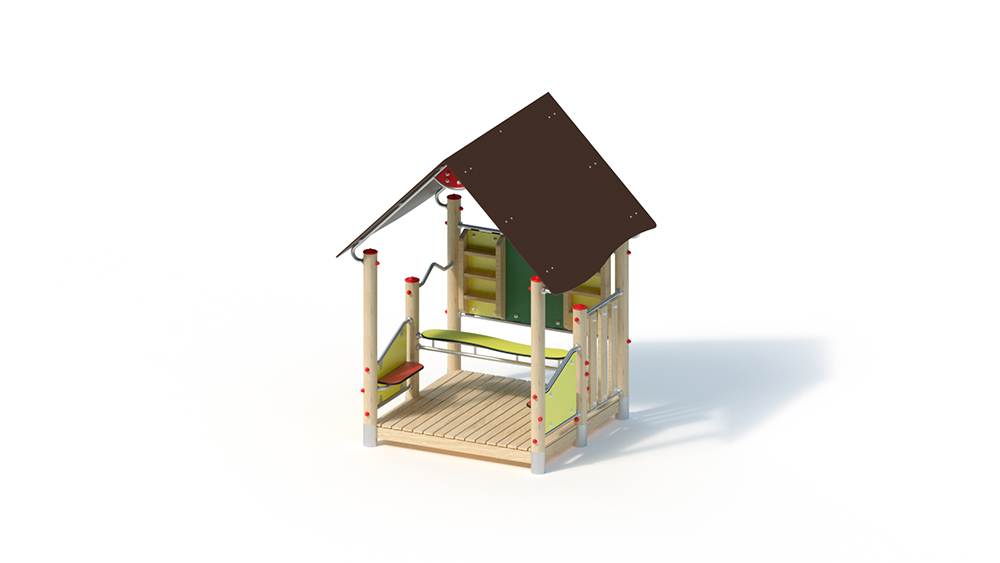

Department store

2+

Public Playgrounds

Social

Suitable for
children from 2 years,
public playgrounds etc.
social activities.

-

2.20 m

2.00 m

1.65 m

5.20 m

5.00 m

1.65 m

50.00 kg

340.00 kg

0.55 m

0.20 m

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 2.5 hours (without foundation creation)

Technical data
Floor area: 2.00 x 2.20 m
Minimum space: 5.00 x 5.20 m (24 m²)
Total height: 2.80 m
Platform height: 0.20 m

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– wooden parapet made of robinia, 125 x 30 mm, attachment between stainless steel tubes Ø 33.7 x 2 mm
– panel parapet made of highly weather-resistant HPL laminate board (yellow), attachment between stainless steel tubes Ø 33.7 x 2 mm
– robinia shelf 45 x 100 mm, planed, chamfered and free of rotten branches, rear wall made of highly weather-resistant HPL laminate board (green / yellow), 15 mm
– iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (brown), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Seat: made of highly weather-resistant HPL laminate board (yellow), 20 mm
– Counter, wave-shaped, made of highly weather-resistant HPL laminate board (red), 20 mm

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.38 m³

Free fall height
0.55 m
