Dalben Tower (7.50)

-+

-

-

Installation time
2 fitters 14 hours each, plus lifting gear
(without foundation creation)

-

2.90 m

9.75 m

7.50 m

5.90 m

13.25 m

7.50 m

320.00 kg

1850.00 kg

-

-

4 pieces - 1.00 x 1.00 x 0.50 m volume: 0.50 m3

1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

1 piece - 1.40 x 0.75 x 0.40 m volume: 0.42 m3

-

-

-

2 pers.

14 h

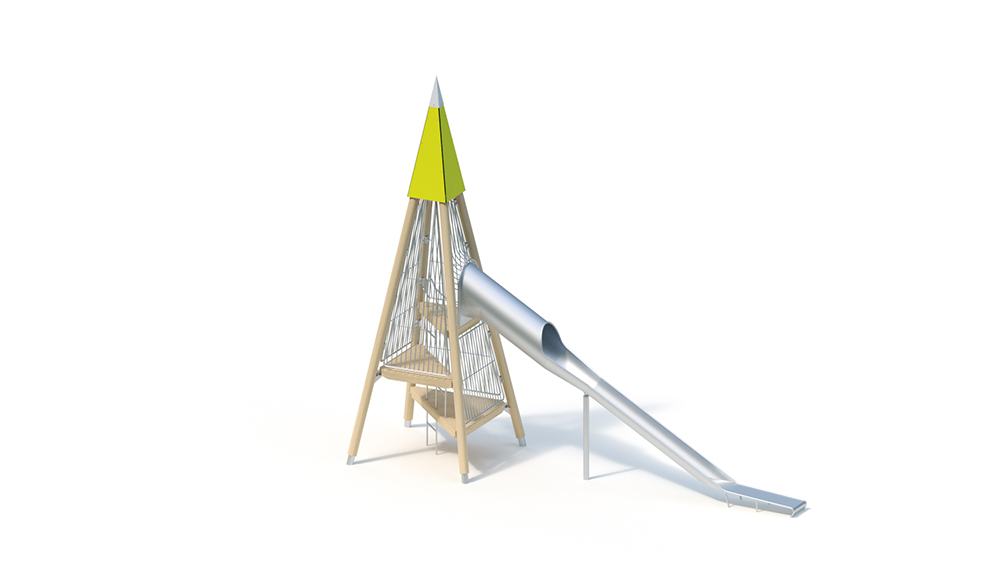

K&K Dalbenturmanlage consisting of: Dalbenturm (7.50) with tunnel slope slide 30 ° (3.00 m); Tower hood yellow / similar to RAL 1021 Technical data Floor area: 2.90 x 9.75 m Minimum space: 5.90 x 13.25 m (55 m²) Height: 7.50 m + tower end Platform heights: 1.00 / 2.00 / 3.00 m Extension height: 3.00 m seat height: 3.10 m Slide inclination: 30 ° Slide width: 0.80 / 0.60 m Slide plate thickness: 2.5 mm Weight: 320 kg, heaviest single part 1850 kg in total Stand post glued wood larch Ø 20 cm with triple wood protection coating , on hot-dip galvanized steel feet Platform floors Triangular wooden platforms , joists laminated larch wood, platform covering Robinia 95 x 30 mm, screwable flange connections on the support posts, ladder access made of stainless steel pipe , rung height 500 mm, including fall protection, between the platforms, glass bead blasted. Protective grille (from 1.00 m platform height) welded construction made of stainless steel tube Ø 21 / 33.7mm, glass bead blasted, from 1.00 m platform height, screwable flange connections on the support posts Tower hood high pressure laminate 15 mm, color yellow / similar to RAL 1021 Tower end cover made of stainless steel sheet K&K tunnel slope slide , Ah 3.00 m slide segments made of stainless steel thanks to the tubular trough shape, particularly low-noise, welded to a one-piece slide, consisting of the following elements: - 16100 K&K tunnel slide single seat - 16110054 K&K tunnel slide straight, length 0.54 m - 41590 K&K slope slide tunnel slide adapter - 41550180 K&K slope slide straight, length 1.80 m - 41660 K&K slope slide midi run Including K&K landslide support post, support post made of stainless steel tube Ø 120 x 3 mm, mounting flange made of stainless steel. For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees. Anchoring Dowelling of the circular base with 2 injection anchor rods made of A4 stainless steel. To protect against damage, the tower is equipped with a lightning rod. Foundations (on site) 4 pcs. 1.00 x 1.00 x 0.50 m 1 pc. 0.40 x 0.40 x 0.60 m 1 pc. 1.40 x 0.75 x 0.40 m amount of concrete: 2.52 m³ Free height of fall m

–
