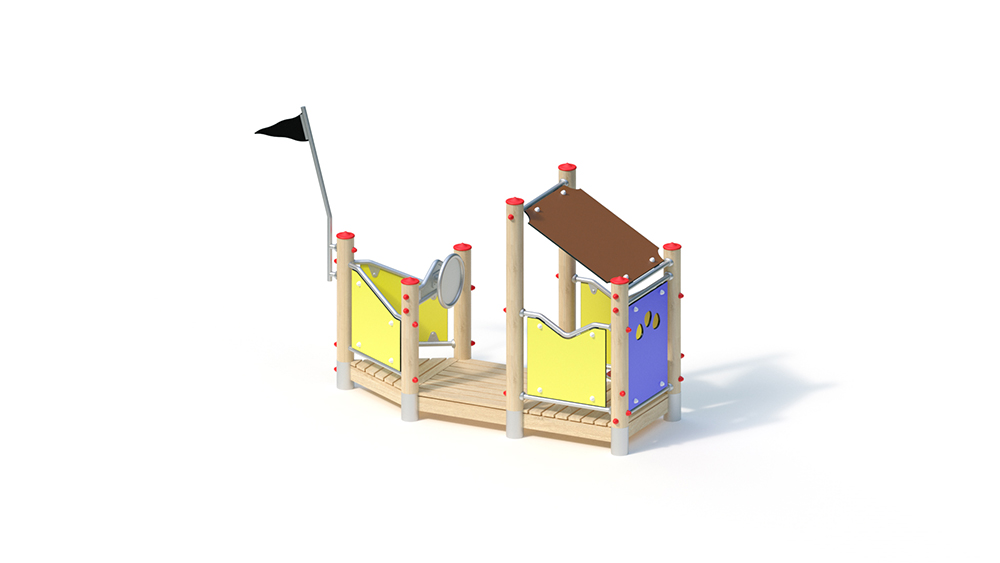

Cutter
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Social activity
Suitable for
Suitable for
children from 2 years,
public playgrounds etc.,
social / physical activities
Techincal Specifications
Lifting Device
-
Total Length
3.05 m
Total Width
0.95 m
Total Height
2.00 m
Minimum Space Length
5.70 m
Minimum Space Width
3.95 m
Minimum Space Height
2.00 m
Heaviest Single Piece
25.00 kg
(Total) Weight
275.00 kg
Free Height of Fall
0.50 m
Platform Heights
0.20 m
Foundations
Foundation 1
7 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Floor area: 0.95 x 3.05 m
Minimum space: 3.95 x 5.70 m (19 m²)
Total height: 2.00 m
Platform height: 0.20 m
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachment parts
– Monopitch roof, inclination 30 °, made of highly weather-resistant HPL laminate board (brown), 13 mm, attachment to the roof frame made of stainless steel Ø 33.7 x 2 mm
– Panel parapet made of highly weather-resistant HPL laminate board (blue / yellow), 15 mm, Fastening between stainless steel tubes Ø 33.7 x 2 mm
– Seat: made of highly weather-resistant HPL laminate
board (red), 20 mm – Steering wheel: rotatable with snap-in
– Front flag made of rubber with fabric insert
Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
7 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.45 m³
Free fall height
0.50 m
