0-44384-002

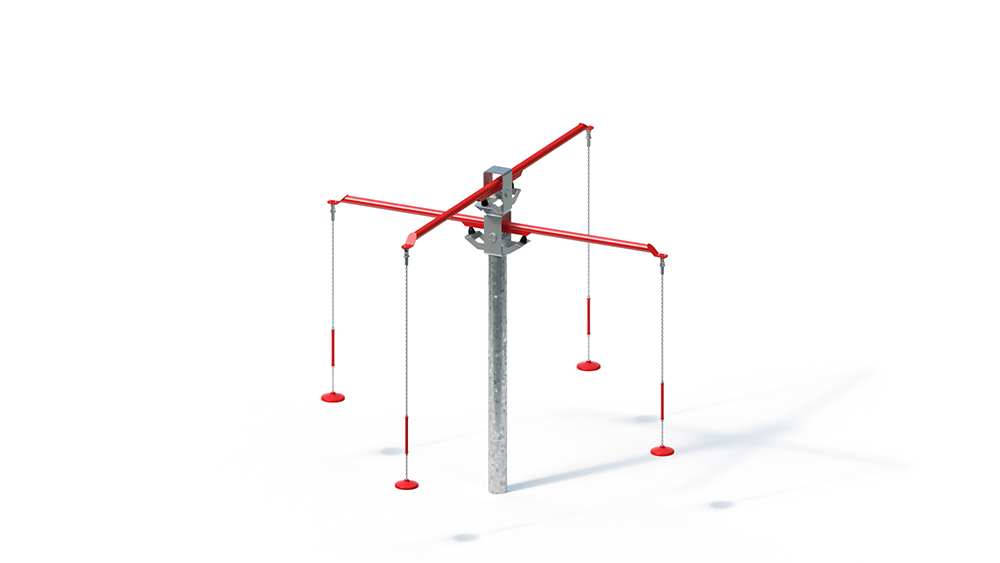

Cross pendulum balance

Key Attributes

Age Group

6+

Area of Use

Public Playgrounds

Activity

Rock

Suitable for

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities.

Techincal Specifications

Lifting Device

-

Total Length

4.30 m

Total Width

3.90 m

Total Height

3.50 m

Minimum Space Length

9.05 m

Minimum Space Width

8.35 m

Minimum Space Height

3.50 m

Heaviest Single Piece

195.00 kg

(Total) Weight

335.00 kg

Free Height of Fall

1.40 m

Platform Heights

-

Foundations

Foundation 1

1 piece - 1.00 x 1.00 x 0.80 m volume: 0.80 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Floor area: 3.90 x 4.30 m
Minimum space: 8.35 x 9.05 m (53 m²)
Total height: 3.50 m
Weight: 195 kg heaviest individual part
355 kg in total

– Post made of steel tube Ø 193.7 x 5.6 mm, hot-dip galvanized, with base plate.
– Rocking mechanism made of vibration-damping rubber suspension. In addition, shock-absorbing thanks to parabolic rubber buffers.
– Pendulum scales support, hot-dip galvanized steel, additionally powder-coated, color red (RAL 2002).
– Universal joints made of stainless steel with ball-bearing swivel swivels.
– Safety swing seats with thermally pressed, flexible rubber handle on stainless steel chains.

Foundation (on site)
1 pc. 1.00 x 1.00 x 0.80 m
amount of concrete: 0.80 m³

Free fall height
1.40 m
