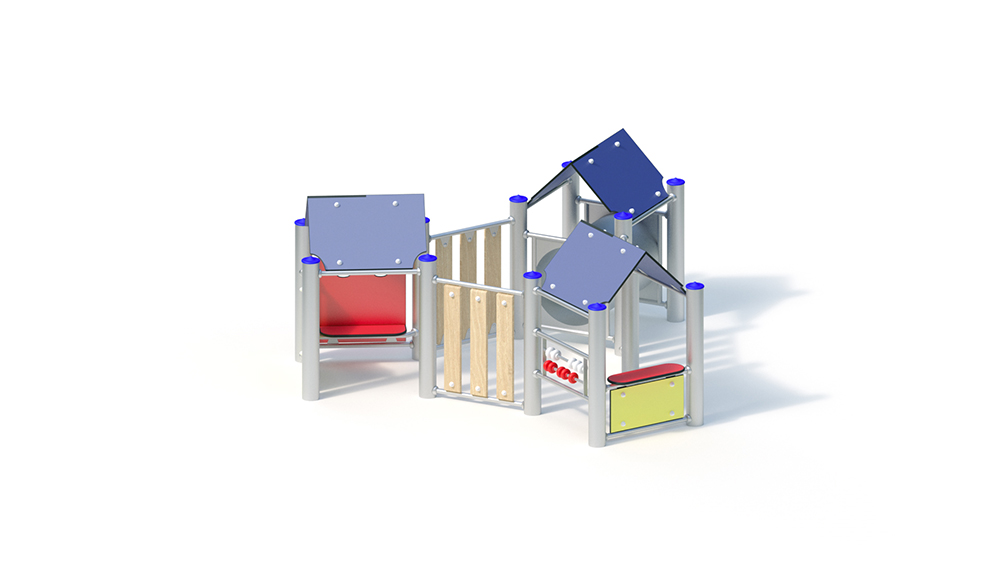

0-20053-501

Crawling forum

Key Attributes

Age Group

1+

Area of Use

Public Playgrounds

Activity

Social

Suitable for

Suitable for
all age groups,
public playgrounds etc.,
social / physical activities .

Techincal Specifications

Lifting Device

-

Total Length

3.11 m

Total Width

2.71 m

Total Height

1.33 m

Minimum Space Length

6.11 m

Minimum Space Width

5.71 m

Minimum Space Height

1.33 m

Heaviest Single Piece

40.00 kg

(Total) Weight

340.00 kg

Free Height of Fall

0.45 m

Platform Heights

-

Foundations

Foundation 1

12 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Equipment compartment: 3.11 x 2.71 x 1.33 m
Minimum space: 6.11 x 5.71 x 1.33 m
Total height: 1.33 m
Free fall height: 1.33 m
Impact area: 28 m²
Weight: 40 kg heaviest single part
320 kg in total

Support
posts Support posts made of stainless steel tube, Ø 120 x 3 mm, covered with non- removable post caps made of stainless steel.

Attachments
– Parapet made of highly weather-resistant HPL laminate board (yellow, red)
– Robinia wood parapet, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Seat / counter: made of colored, highly weather-resistant HPL laminate board, 20 mm (red, yellow)
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm – crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
– Slide rule: elements made of polyamide, Ø 80 mm

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
12x 0.40 x 0.40 x 0.40 m
Concrete quantity: 0.8 m³
