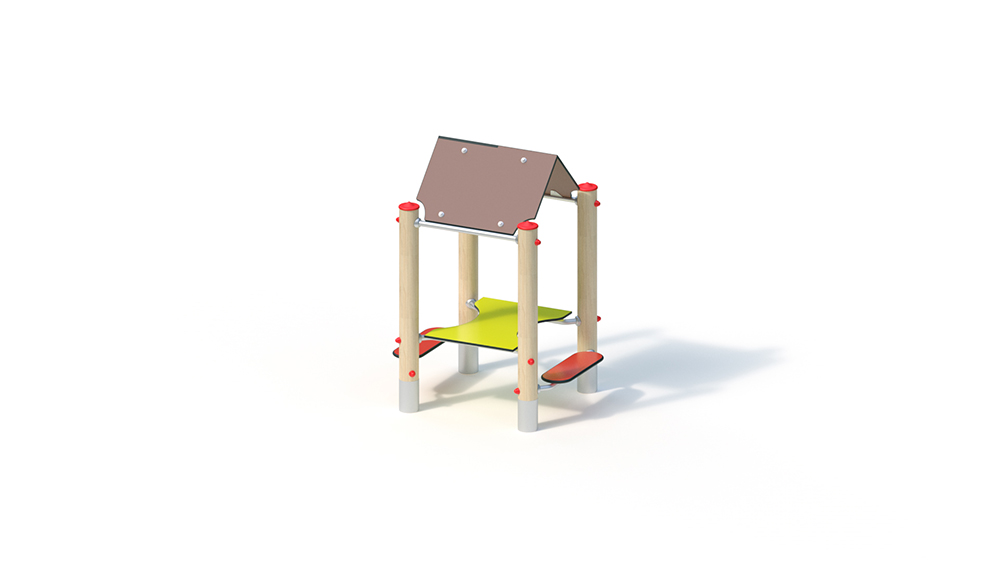

Craft house

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
all age groups,
public playgrounds etc.,
social activities.

Techincal Specifications

Lifting Device


Total Length

1.20 m

Total Width

0.95 m

Total Height

1.65 m

Minimum Space Length

4.20 m

Minimum Space Width

3.95 m

Minimum Space Height

1.65 m

Heaviest Single Piece

20.00 kg

(Total) Weight

115.00 kg

Free Height of Fall

0.50 m

Platform Heights



Foundation 1

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical Data

Technical data
Floor area: 0.95 x 1.20 m
Minimum space: 3.95 x 4.20 m (15 m²)
Total height: 1.65 m
Seat / table height: 0.30 / 0.50 m
Weight: 20 kg heaviest Single part
115 kg total weight

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

– table: made of highly weather-resistant HPL laminate board (yellow), 15 mm
– seat: made of highly weather-resistant HPL laminate board (red), 20 mm
– pitched roof, inclination 45 °, made of highly weather-resistant HPL laminate board (brown), 13 mm , Fastening to the roof frame made of stainless steel tube Ø 33.7 x 2 mm

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.26 m³

Free fall height
0.50 m
