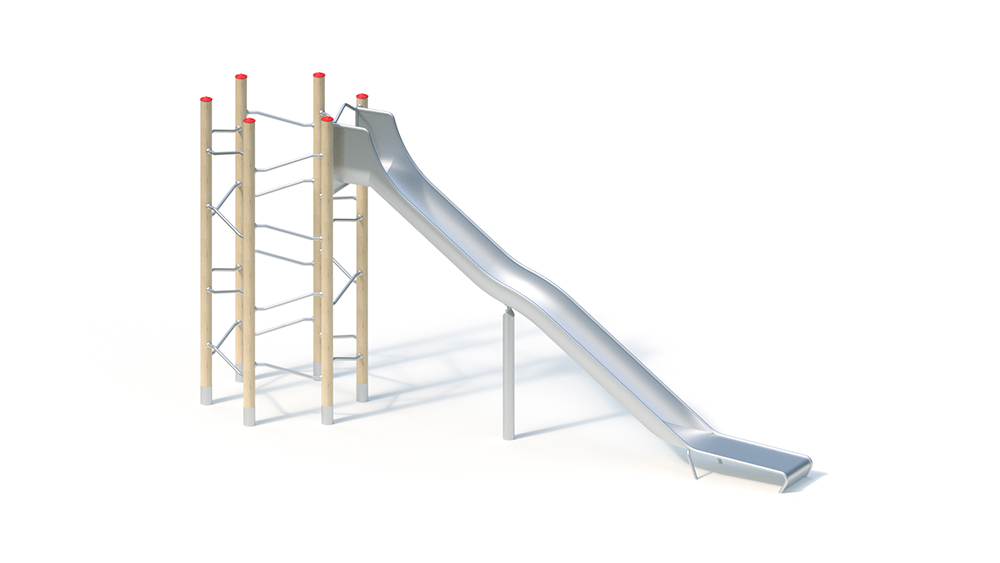

Combination slide 2.40

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device


Total Length

6.70 m

Total Width

1.75 m

Total Height

3.35 m

Minimum Space Length

11.75 m

Minimum Space Width

6.70 m

Minimum Space Height

3.40 m

Heaviest Single Piece

165.00 kg

(Total) Weight

410.00 kg

Free Height of Fall

2.95 m

Platform Heights



Foundation 1

0.40 x 0.40 x 0.60 m volume: 0.10 m3 0.90 x 0.75 x 0.40 m volume: 0.27 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6

0.40 x 0.40 x 0.40 m volume: 0.07 m3


Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Total height: 3.35 m
Base area: 1.75 x 6.70 m
Minimum space: 6.70 x 11.15 m (53 m²)
Sitting height: 2.50 m Slide incline
: 36 ° Slide width
: 0.60 m Thickness of slide plate
: 2.5 mm

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts
– Climbing
rungs made of stainless steel tube , Ø 38 mm, twist -proof – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll fall protection above the seat part, including K&K slope slide support post for the shaft area and mounting flange, each made of stainless steel.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 0.90 x 0.75 x 0.40 m
amount of concrete: 0.60 m³

Free fall height
2.95 m
