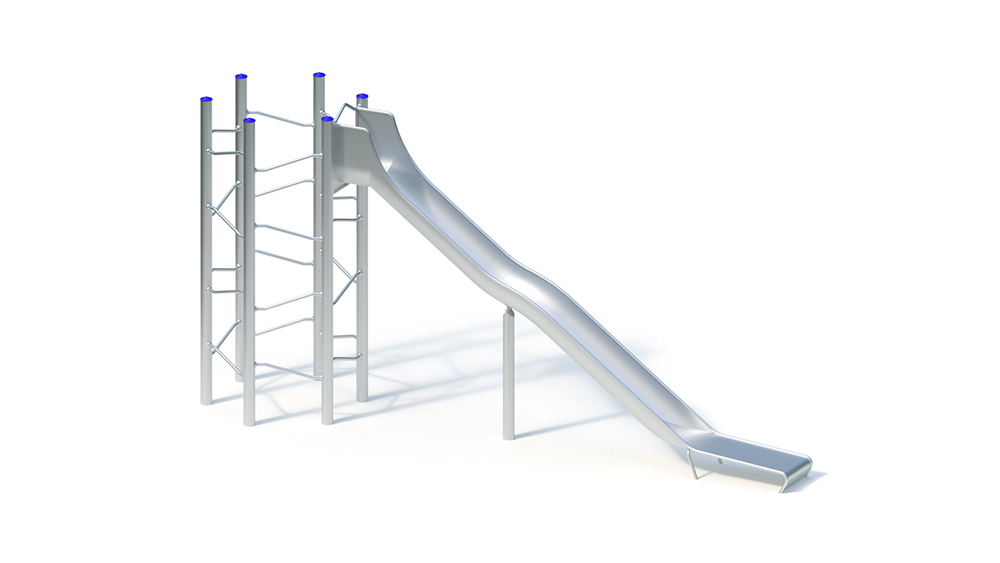

Combination slide 2.40

5+

Public Playgrounds

Slide

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

-

6.70 m

1.75 m

3.35 m

11.15 m

6.70 m

3.40 m

165.00 kg

410.00 kg

2.95 m

-

0.40 x 0.40 x 0.60 m volume: 0.10 m3 0.90 x 0.75 x 0.40 m volume: 0.27 m3

-

-

-

-

0.40 x 0.40 x 0.40 m volume: 0.07 m3

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Total height: 3.35 m
Base area: 1.75 x 6.70 m
Minimum space: 6.70 x 11.15 m (53 m²)
Sitting height: 2.50 m Slide incline
: 36 ° Slide width
: 0.60 m Thickness of slide plate
: 2.5 mm

Support
posts Support posts made of stainless steel tube Ø 120 mm, covered with non-detachable post caps made of stainless steel.

Attachment parts
– Climbing
rungs made of stainless steel tube , Ø 38 mm, twist -proof – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll fall protection above the seat part, including K&K slope slide support post for the shaft area and mounting flange, each made of stainless steel.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 0.90 x 0.75 x 0.40 m
amount of concrete: 0.60 m³

Free fall height
2.95 m
