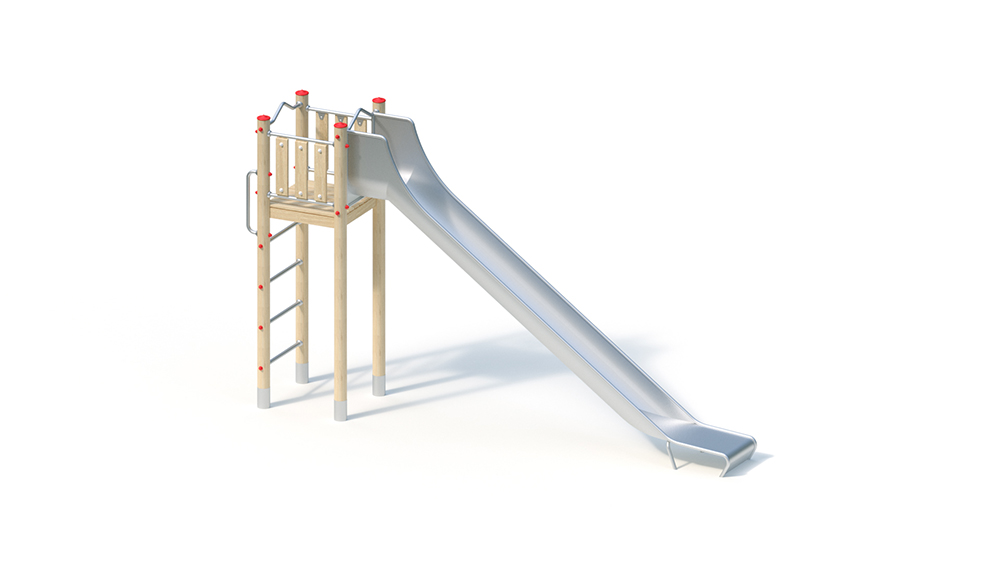

Combination slide (2.00)

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device

-

Total Length

4.97 m

Total Width

0.93 m

Total Height

2.94 m

Minimum Space Length

8.67 m

Minimum Space Width

4.59 m

Minimum Space Height

2.94 m

Heaviest Single Piece

115.00 kg

(Total) Weight

285.00 kg

Free Height of Fall

2.10 m

Platform Heights

2.00 m

Foundations

Foundation 1

0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 2

-

Foundation 3

-

Foundation 4

0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Floor space: 0.93 x 4.97 m
Minimum space: 4.60 x 8.75 m (32 m²)
Total height: 2.94 m
Platform height: 2.00 m
Sitting height: 2.10 m Slide incline
: 36 °
Weight: 115 kg heaviest single part
285 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– wooden parapet made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– iron railing, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
– climbing rungs made of stainless steel tube , Ø 38 mm, twist-proof
– vertical handle as
Climbing aid made of stainless steel tube , Ø 33.7 x 2 mm – add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.38 m³

Free fall height
2.10 m
