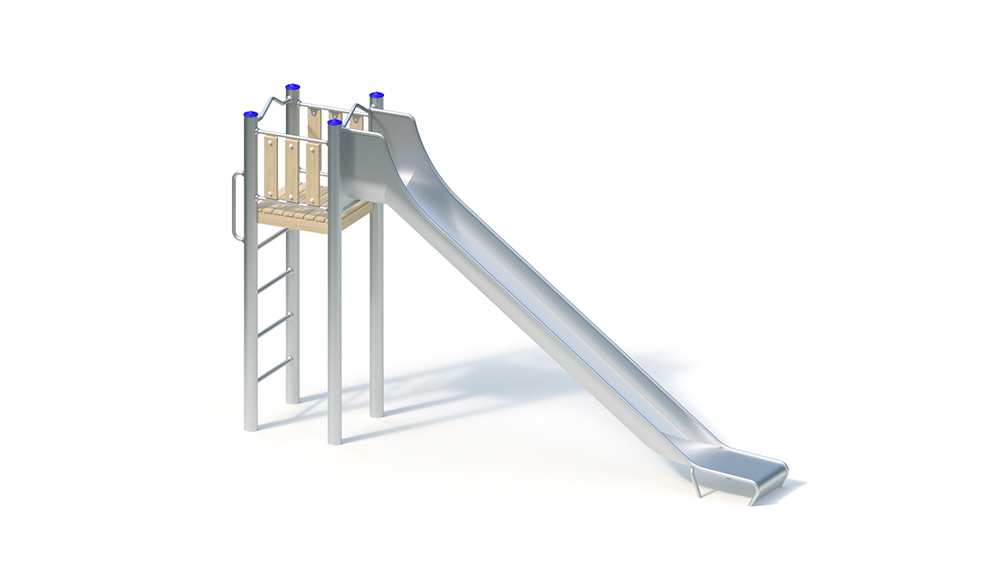

Combination slide (2.00)

5+

Public Playgrounds

Slide

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

-

4.97 m

0.93 m

2.94 m

8.67 m

4.59 m

2.94 m

115.00 kg

285.00 kg

2.10 m

2.00 m

0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Floor area: 0.93 x 4.97 m
Minimum space: 4.58 x 8.67 m (30 m²)
Total height: 2.94 m
Platform height: 2.00 m
Sitting height: 2.10 m Slide incline
: 36 °
Weight: 115 kg heaviest single part
285 kg in total

Support
posts Support posts made of stainless steel, Ø 120 mm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– wooden parapet made of robinia, 120 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
– bail, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
– climbing rungs made of stainless steel tube, Ø 38 mm, twist-proof
– vertical handle as a climbing aid made of stainless steel tube , Ø 33.7 x 2 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.38 m³

Free fall height
2.10 m
