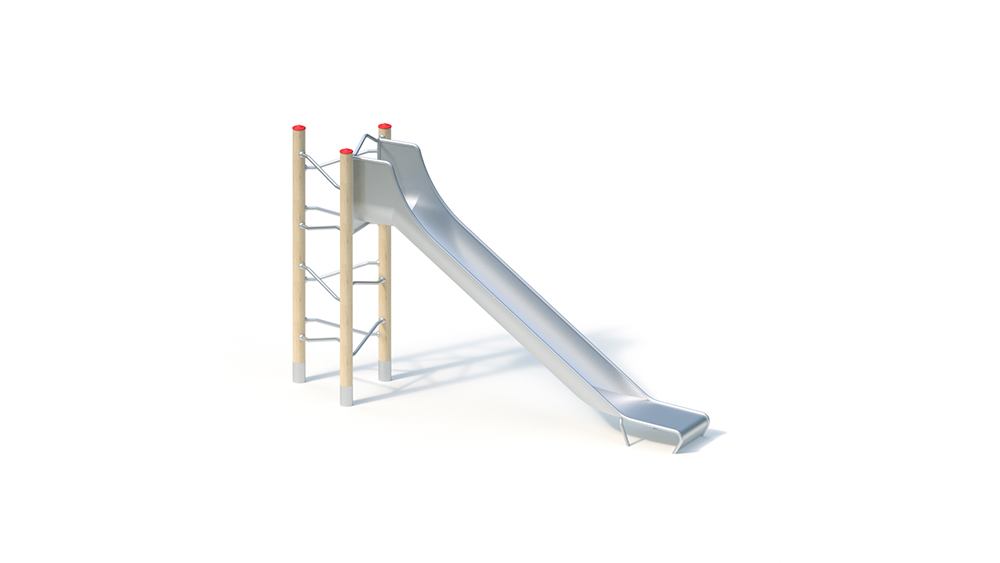

Combination slide 1.60

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device


Total Length

4.20 m

Total Width

0.95 m

Total Height

2.55 m

Minimum Space Length

8.25 m

Minimum Space Width

5.00 m

Minimum Space Height

2.60 m

Heaviest Single Piece

105.00 kg

(Total) Weight

200.00 kg

Free Height of Fall

2.30 m

Platform Heights



Foundation 1

0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 2


Foundation 3

0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical Data

Technical data
Equipment room: 0.95 x 4.20 x 2.55 m
Minimum space: 5.00 x 8.25 x 2.55 m
Impact area: 31 m²
Total height: 2.55 m
Free fall height: 2.32 m
Sitting height: 1st , 70 m
slide slope: 36 °

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts
– Climbing
rungs made of stainless steel tube , Ø 38 mm, twist -proof – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
3 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.31 m³
