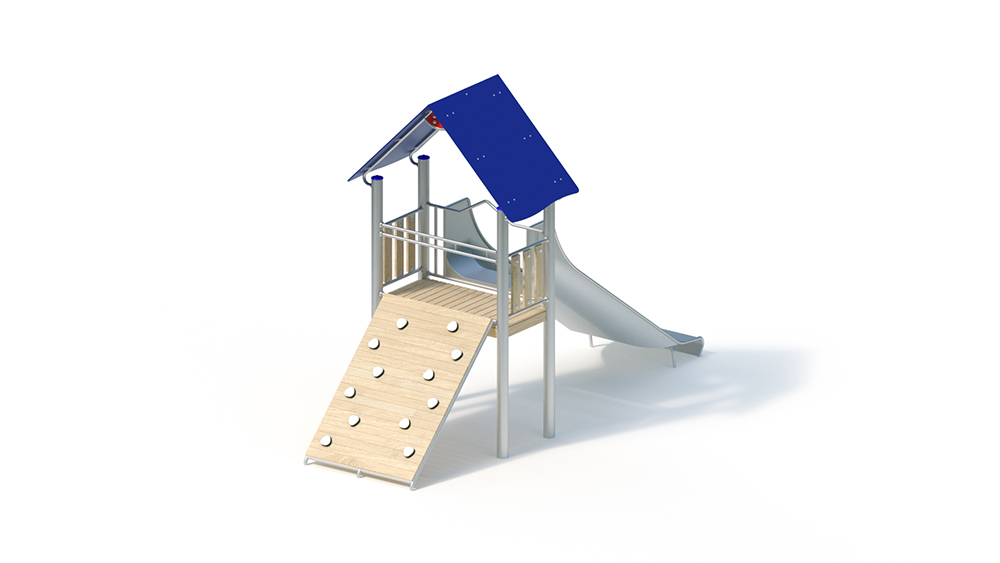

Combination slide 1.40

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

-

Total Length

5.25 m

Total Width

2.20 m

Total Height

3.75 m

Minimum Space Length

8.75 m

Minimum Space Width

4.75 m

Minimum Space Height

2.40 m

Heaviest Single Piece

135.00 kg

(Total) Weight

545.00 kg

Free Height of Fall

1.50 m

Platform Heights

1.40 m

Foundations

Foundation 1

1.25 x 0.40 x 0.40 m volume: 0.20 m3

Foundation 2

-

Foundation 3

0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 4

0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Total height: 3.75 m
Base area: 2.20 x 5.25 m
Minimum space: 4.75 x 8.75 m (35 m²)
Platform height
: 1.40 m
Slide extension height: 1.40 m Seat height: 1.50 m Slide incline:
36 ° Slide width:
1.10 m
Slide plate thickness: 2.5 mm

Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with continuous bolt connections.

Attachment parts
– Robinia wood balustrade, 125 x 30 mm, fastening between stainless steel
tubes Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube , Ø 33.7 x 2 mm – Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board – Gable
roof, inclination 45 ° , made of blue, highly weather-resistant HPL laminate board, 13 mm, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm – add-on wide slide, 1.10 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll-off fall protection over the single seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
4 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
amount of concrete: 0.56 m³

Free fall height
1.50 m
