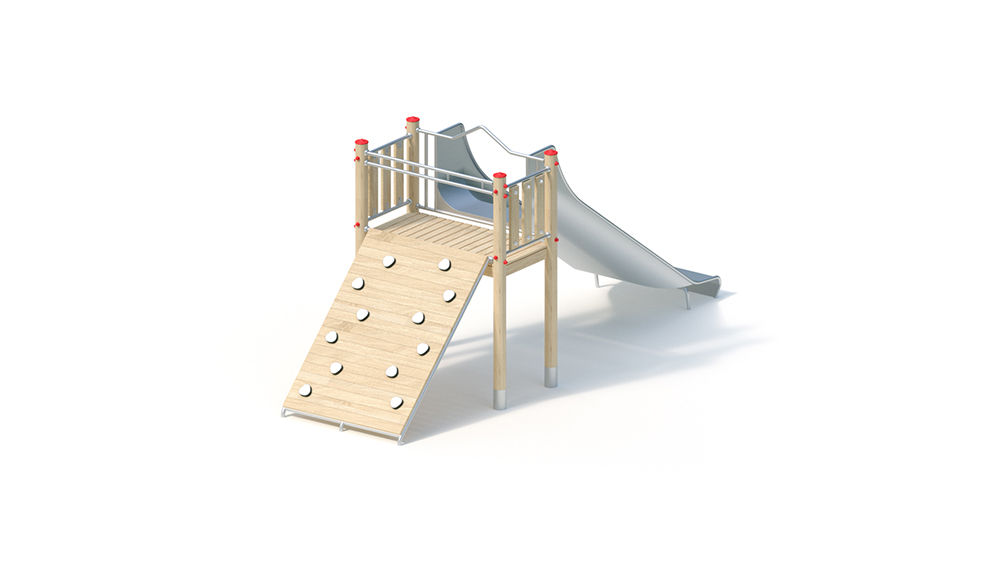

Combination slide 1.40

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

-

Total Length

5.25 m

Total Width

1.75 m

Total Height

2.40 m

Minimum Space Length

8.75 m

Minimum Space Width

4.75 m

Minimum Space Height

2.40 m

Heaviest Single Piece

135.00 kg

(Total) Weight

460.00 kg

Free Height of Fall

1.50 m

Platform Heights

1.40 m

Foundations

Foundation 1

1.25 x 0.40 x 0.40 m volume: 0.20 m3

Foundation 2

-

Foundation 3

0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 4

0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 2.5 hours (without foundation creation)

Technical Data

Technical data
Total height: 2.40 m
Base area: 1.75 x 5.25 m
Minimum space: 4.75 x 8.75 m (35 m²)
Platform height
: 1.40 m
Slide extension height: 1.40 m Seat height: 1.50 m Slide incline:
36 ° Slide width:
1.10 m
Slide plate thickness: 2.5 mm

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel. Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with continuous bolt connections.

Attachment parts
– wooden parapet made of robinia, 120 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– tandem railing made of stainless steel
tube , Ø 33.7 x 2 mm – climbing wall made of robinia wood with attached climbing elements made of HPL laminate
board – add-on wide slide, 1 , 10 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll protection against falling over the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
4 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
amount of concrete: 0.56 m³

Free fall height
1.50 m
