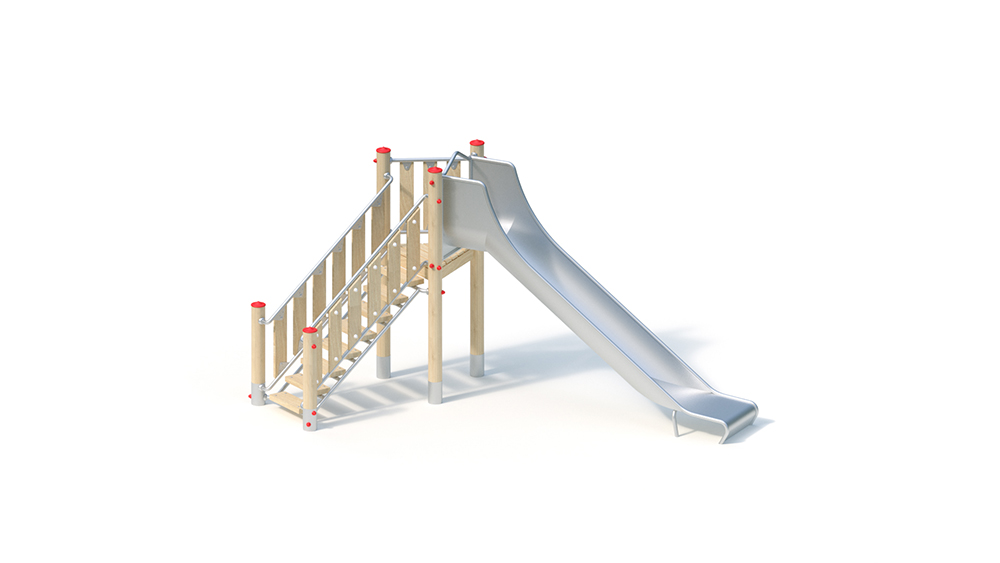

Combination slide 1.20

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

4.15 m

Total Width

2.05 m

Total Height

2.15 m

Minimum Space Length

7.65 m

Minimum Space Width

5.05 m

Minimum Space Height

2.20 m

Heaviest Single Piece

90.00 kg

(Total) Weight

370.00 kg

Free Height of Fall

1.30 m

Platform Heights

1.20 m

Foundations

Foundation 1

0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical Data

Technical data
Total height: 2.15 m
Base area: 2.05 x 4.15 m
Minimum space: 5.05 x 7.65 m (28 m²)
Platform height
: 1.20 m
Slide extension height: 1.20 m Sitting height: 1.30 m Slide incline:
36 ° Slide width:
0.60 m
Slide plate thickness: 2.5 mm

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel. Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with continuous bolt connections.

Attachment parts
– wooden parapet made of robinia, 120 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, height of the steps 133 mm
– Stair balustrade made of robinia wood, fastened between stainless steel tubes Ø 33.7 x 2 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the single seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
5 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.44 m³

Free fall height
1.30 m
