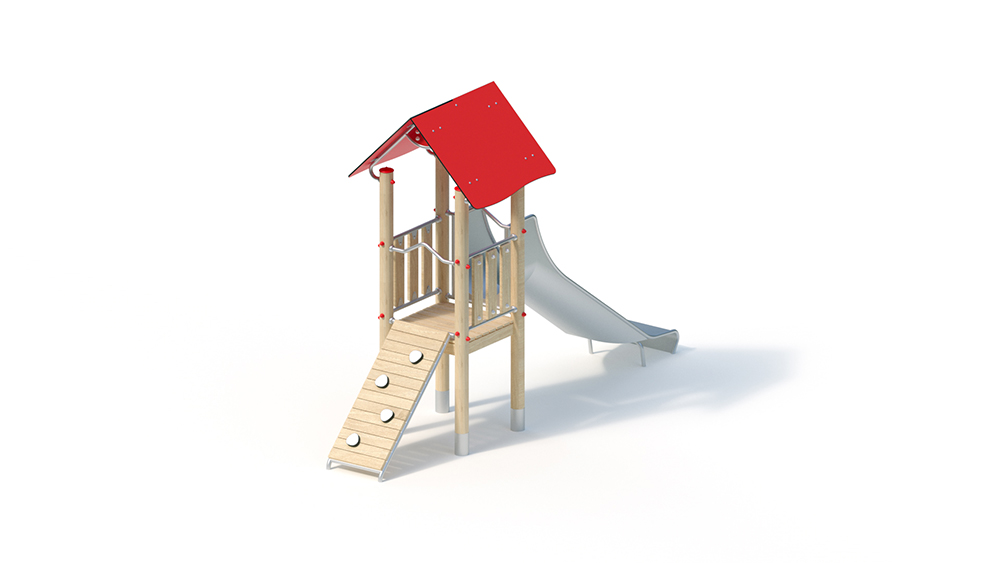

Combination slide 1.00

5+

Public Playgrounds

Slide

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

-

4.30 m

1.45 m

3.05 m

7.80 m

3.95 m

2.00 m

85.00 kg

290.00 kg

1.10 m

1.00 m

0.75 x 0.40 x 0.40 m volume: 0.12 m3

0.30 x 0.30 x 0.40 m volume: 0.04 m3

-

0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

2 pers.

3 h

Assembly time 2 fitters each 2.5 hours (without foundation creation)

Technical data
Floor area: 1.45 x 4.30 m
Minimum space: 3.95 x 7.80 m (25 m²)
Total height: 3.05 m
Platform height
: 1.00 m
Slide extension height : 1.00 m Sitting height: 1.10 m

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– wood balustrade made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
– gable roof, Inclination 45 °, made of highly weather-resistant HPL laminate board (red), 13 mm, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm – add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
2 pcs. 0.30 x 0.30 x 0.40 m
4 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.45 m³

Free fall height
1.10 m
