0-41146-500

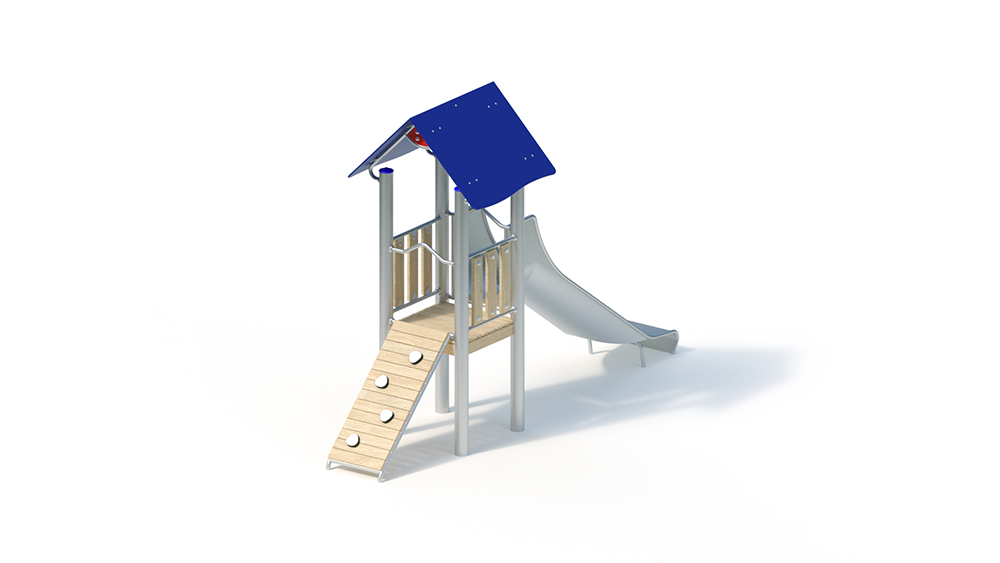

Combination slide 1.00

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

-

Total Length

4.30 m

Total Width

1.45 m

Total Height

3.05 m

Minimum Space Length

7.80 m

Minimum Space Width

3.95 m

Minimum Space Height

2.00 m

Heaviest Single Piece

85.00 kg

(Total) Weight

290.00 kg

Free Height of Fall

1.10 m

Platform Heights

1.00 m

Foundations

Foundation 1

0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 2

0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 3

-

Foundation 4

0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 2.5 hours (without foundation creation)

Technical Data

Technical data
Total height: 3.05 m
Base area: 1.45 x 4.30 m
Minimum space: 3.95 x 7.80 m (25 m²)
Platform height
: 1.00 m
Slide extension height: 1.00 m Sitting height: 1.10 m Slide incline:
36 ° Slide width:
0.60 m
Slide plate thickness: 2.5 mm

Stand
posts Stand posts made of stainless steel, Ø 12 cm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with continuous bolt connections.

Attachment parts
– wooden parapet made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
– gable roof, Inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm / royal blue, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm – add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with Roll-preventing fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
2 pcs. 0.30 x 0.30 x 0.40 m
4 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.45 m³

Free fall height
1.10 m
