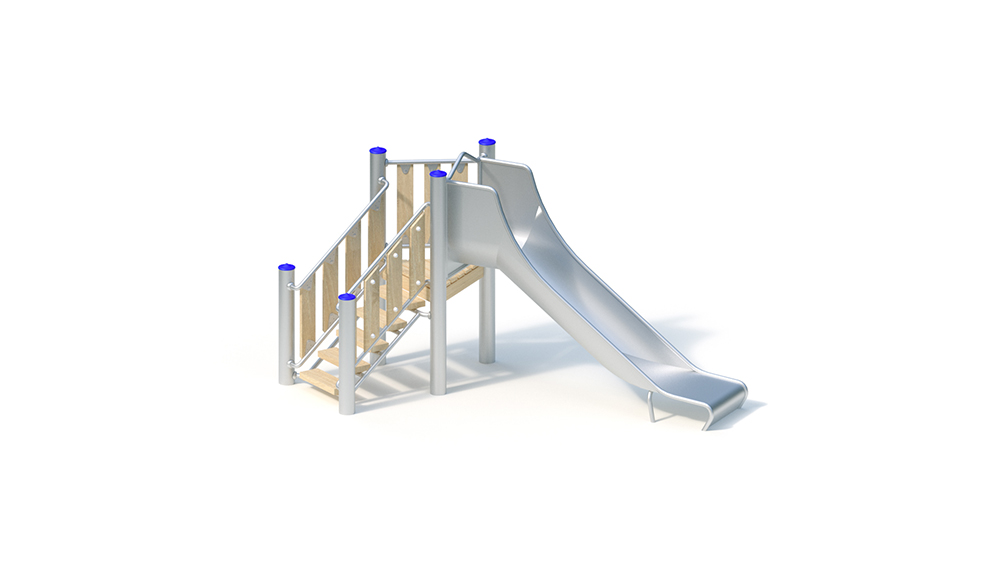

Combination slide 0.80

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Physical

Suitable for

Suitable for
children from 3 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device

-

Total Length

3.35 m

Total Width

1.65 m

Total Height

1.75 m

Minimum Space Length

6.85 m

Minimum Space Width

4.65 m

Minimum Space Height

2.40 m

Heaviest Single Piece

75.00 kg

(Total) Weight

285.00 kg

Free Height of Fall

0.90 m

Platform Heights

0.80 m

Foundations

Foundation 1

5 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 1.65 x 3.35 m
Minimum space: 4.65 x 6.85 m (24 m²)
Total height: 1.75 m
Platform height
: 0.80 m
Slide extension height : 0.80 m Sitting height: 0.90 m

Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Wooden balustrade made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, height of the steps 133 mm
– Stair balustrade made of robinia wood, fastened between stainless steel tubes Ø 33.7 x 2 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the single seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
5 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.44 m³

Free fall height
0.90 m
