Combination sanding

5+

Public Playgrounds

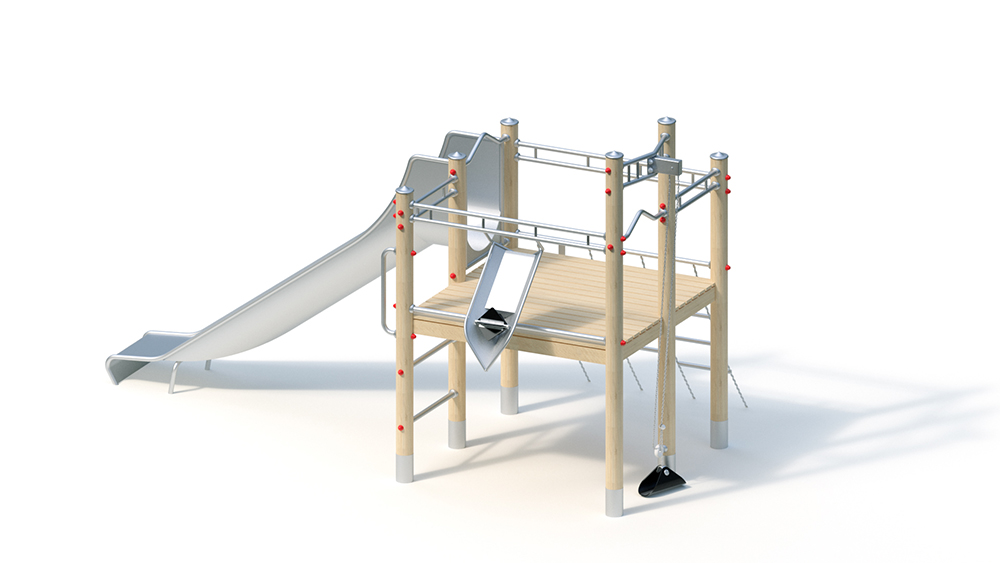

Slide

Suitable for
children from 5 years,
public playgrounds etc.,
manual activities / exercise activities

-

4.40 m

2.80 m

2.65 m

7.90 m

5.80 m

2.80 m

85.00 kg

400.00 kg

1.30 m

1.20 m

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

-

2 pers.

6 h

Installation time 2 fitters 6 hours each (without foundation creation)

Technical data
Floor area: 2.80 x 4.40 m
Minimum space: 5.80 x 7.90 m (33 m²)
Total height: 2.65 m
Platform height: 1.20 m Slide seat height
: 1.30 m
Weight: 85 kg Heaviest individual part
400 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – Upright railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm – Climbing rungs made of stainless steel tube,
Ø 38 mm, twist-proof
– Vertical handle as a climbing aid made of stainless steel tube , Ø 33.7 x 2 mm
– sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into adjacent play areas or
open spaces – step channel with sand wheel made of rubber with fabric insert
– chain ladder with stainless steel
rungs – add-on trough slide, 0 , 60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll protection against falling over the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.50 m³

Free fall height
1.30 m
