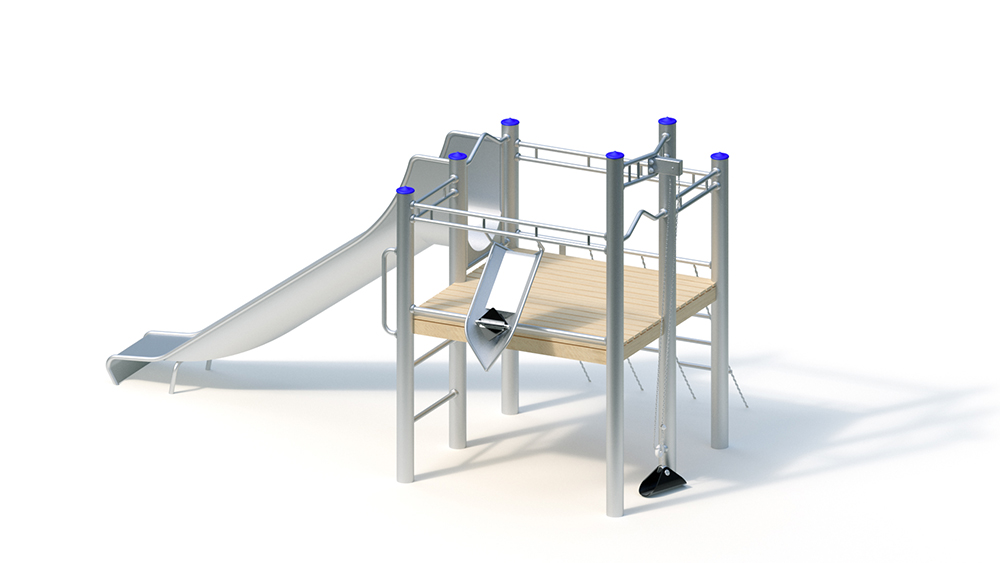

Combination sanding

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for ages 5+,
public playgrounds etc.,
manual / exercise activities

Techincal Specifications

Lifting Device


Total Length

4.40 m

Total Width

2.80 m

Total Height

2.65 m

Minimum Space Length

7.90 m

Minimum Space Width

5.80 m

Minimum Space Height

2.80 m

Heaviest Single Piece

85.00 kg

(Total) Weight

400.00 kg

Free Height of Fall

1.30 m

Platform Heights

1.20 m


Foundation 1

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

6 h

Assembly Details

Installation time 2 fitters 6 hours each (without foundation creation)

Technical Data

Technical data
Floor area: 2.80 x 4.40 m
Minimum space: 5.80 x 7.90 m (33 m²)
Total height: 2.65 m
Platform height: 1.20 m Slide seat height
: 1.30 m Slide incline
: 36 ° Slide width
: 0.60 m
thickness of slide plate: 2.5 mm
weight: 85 kg heaviest single part
400 kg in total

posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm
– climbing rungs made of stainless steel pipe, Ø 38 mm, torsion-
– Vertical handle as a climbing aid for stainless steel pipe, Ø 33.7 x 2 mm
– sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into adjacent play areas or
open spaces – step channel with sand wheel made of rubber with fabric insert
– chain ladder with stainless steel
rungs – add-on trough slide, 0 , 60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll protection against falling over the single-seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.50 m³

Free fall height
1.30 m
