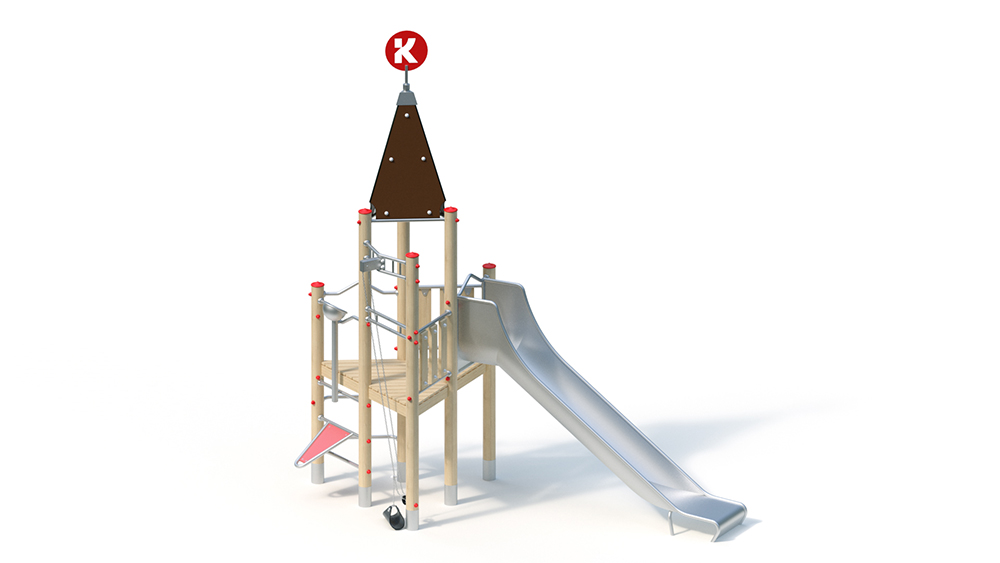

Combination sanding

5+

Public Playgrounds

Social

Suitable for ages 5+,
public playgrounds, etc.
social / manual activities

-

4.25 m

1.75 m

4.60 m

7.75 m

4.75 m

4.60 m

85.00 kg

415.00 kg

1.30 m

1.20 m

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

-

2 pers.

7 h

Assembly time 2 fitters 7 hours each (without foundation creation)

Technical data
Floor area: 1.75 x 4.25 m
Minimum space: 4.75 x 7.75 m (27 m²)
Total height: 4.60 m
Platform height: 1.20 m
Sitting height: 1.30 m
Weight: 85 kg Heaviest individual part
415 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachments
– wooden parapet made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
– bail rail, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
– tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– tower roof, inclination 80 °, made of colored, highly weather-resistant HPL -Schichtstoffplatte, 13 mm, with wind chime
– sand lift, transport container, rubber and a 4 mm stainless steel chain, designed as a revolving member so that the transportation container can not be pulled into adjacent playing areas or free spaces
– sand bulk pipe
– sand slide stainless steel tube with HPL plate
– climbing rungs ( cranked) made of stainless steel tube, Ø 33.7 mm
– vertical handle as a climbing
aid made of stainless steel tube , Ø 33.7 x 2 mm – add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.50 m³

Free fall height
1.30 m
