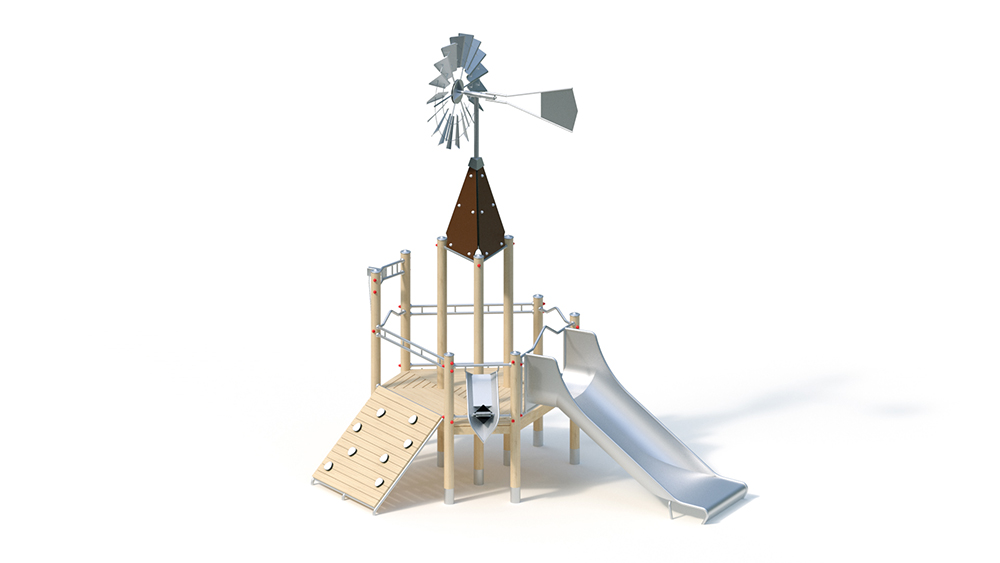

Combination sanding

5+

Public Playgrounds

Social

Suitable for ages 5+,
public playgrounds etc.,
manual / exercise activities

-

5.00 m

3.95 m

5.50 m

8.45 m

6.95 m

5.50 m

110.00 kg

800.00 kg

1.10 m

1.00 m

4 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

9 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

-

-

-

2 pers.

10 h

Assembly time 2 fitters 10 hours each (without foundation creation)

Technical data
Floor space: 3.95 x 5.00 m
Minimum space: 6.95 x 8.45 m (46 m²)
Total height: 5.50 m
Platform height: 1.00 m
Sitting height: 1.10 m

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Podestboden
Podestboden aus Brettern, 30 mm dick und umlaufenden Kantholzunterzügen 45 x 100 mm. Die getrockneten Schnitthölzer aus Robinie sind gehobelt, gefast und frei von Faulästen. Kraftschlüssige Bodenbefestigung durch spezielle Edelstahlwinkel mit einer durchgehenden Bolzenverschraubung.

Attachment parts – Climbing wall made of robinia wood with attached climbing elements made of HPL laminate
board – Upright railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm – Tower
roof, inclination 80 °, made of brown, maximum Weather-resistant HPL laminate board, 13 mm
– wind turbine made of stainless steel construction with 18 dimensionally stable blades. The turbine and control flag are also powder-coated and stove-enamelled, color white / RAL 9010. Other RAL colors on request. The turbine runs smoothly even with little air movement thanks to horizontal and vertical roller bearings.
– Climbing posts made of stainless steel tube Ø 159 × 3 mm, step surface made of profiled stainless steel sheet
– Climbing
net made of stainless steel chains on stainless steel traverse – Step channel with sand wheel made of rubber with fabric insert
– Sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into adjacent play areas or
open spaces – Extension wide slide, 1, 10 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll protection against falling over the single-seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.30 x 0.30 x 0.40 m
9 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
amount of concrete: 0.92 m³

Free fall height
1.10 m
