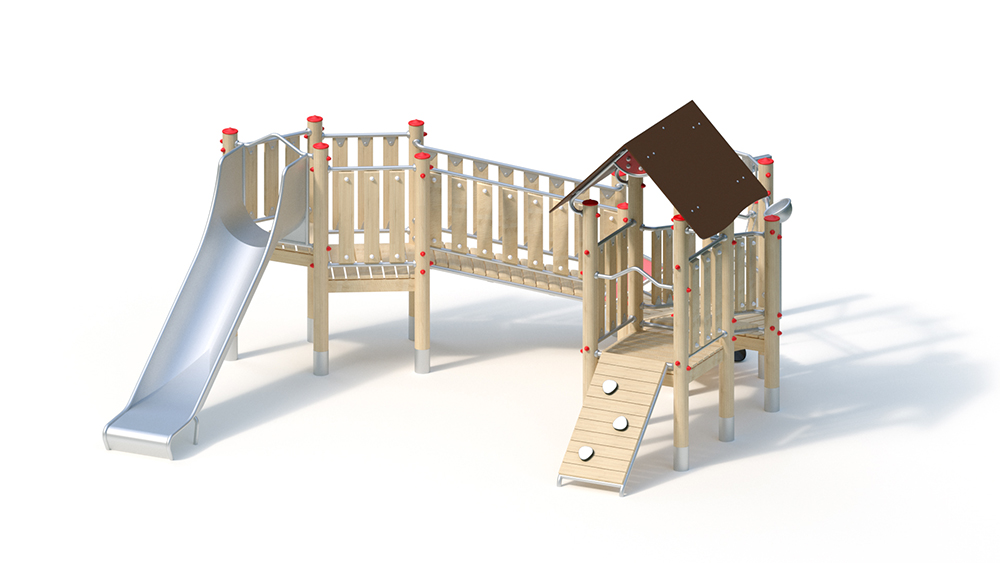

Combination sanding

2+

Public Playgrounds

Slide

Suitable for ages 2+,
public playgrounds, etc.
manual / exercise activities.

-

5.25 m

4.75 m

2.75 m

8.75 m

7.60 m

2.75 m

75.00 kg

845.00 kg

1.10 m

0.20 m, 1.00 m, 0.40 m, 0.60 m, 0.80 m

2 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

17 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

2 pers.

10 h

Assembly time 2 fitters 10 hours each (without foundation creation)

Technical data
Floor space: 4.75 x 5.25 m
Minimum space: 7.60 x 8.75 m (49 m²)
Total height: 2.75 m
Platform height: 0.20 to 1.00 m
Sitting height: 1.10 m
Weight: 75 kg heaviest single part
845 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Anbauteile
– Bügelgeländer, abrollverhindernd, aus Edelstahlrohr, Ø 33,7 x 2 mm
– Tandemgeländer aus Edelstahlrohr, Ø 33,7 x 2 mm
– Stufengeländer aus Edelstahlrohr, Ø 33,7 x 2 mm
– Holzbrüstung aus Robinie, 125 x 30 mm, Befestigung zwischen Edelstahlrohren Ø 33,7 x 2 mm
– Kraxelwand aus Robinienholz mit aufgesetzten Kletterelementen aus HPL-Schichtstoffplatte
– Sandaufzug mit Transportbehälter aus Gummi und einer 4 mm Edelstahlkette, als umlaufendes Element ausgeführt, damit der Transportbehälter nicht in benachbarte Spielbereiche oder Freiräume gezogen werden kann
– Sandrutsche aus Edelstahlrohr mit HPL-Schichtstoffplatte
– Schüttrohr an Halbkugel ohne Verschluss mit aufgeschweißtem Edelstahlring
– Ramp made of stainless steel pipe 33.7 x 2 mm, tread made of profiled boards, 95 x 30 mm – Ramp parapet made
of robinia wood, fastened between stainless steel pipes Ø 33.7 x 2 mm
– Gable roof, with round eaves, inclination 45 °, made of brown, highly weather-resistant HPL laminate board, 13 mm, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm – add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
2 pcs. 0.30 x 0.30 x 0.40 m
17 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 1.28 m³

Free fall height
1.10 m
