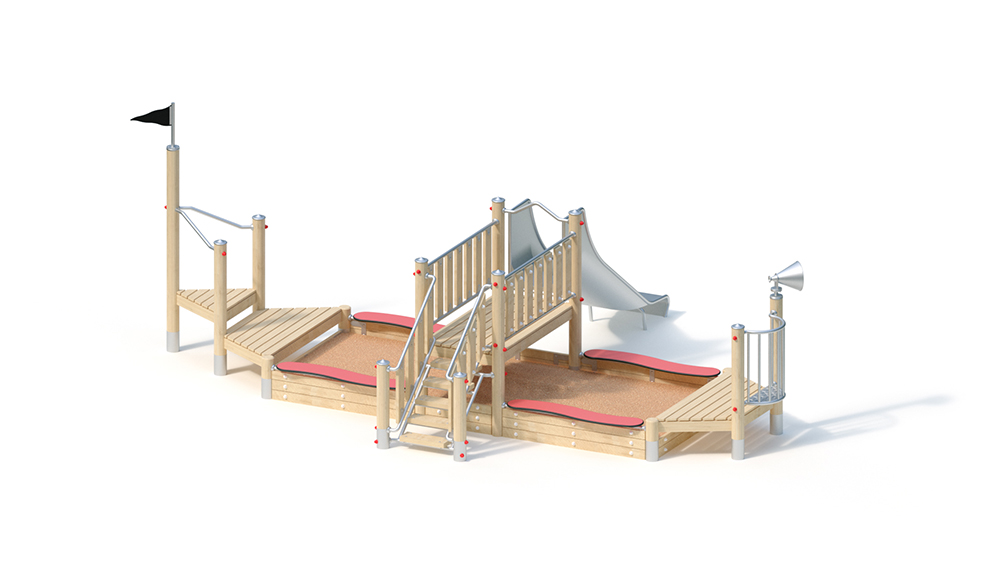

Coastal freighter

2+

Public Playgrounds

Manual activity

Suitable for ages 2+,
public playgrounds, etc.
social / manual activities.

-

6.40 m

4.65 m

2.45 m

9.40 m

8.15 m

2.45 m

75.00 kg

850.00 kg

0.90 m

0.40 m, 0.60 m, 0.80 m

15 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

-

2 pers.

5 h

Assembly time 2 fitters each 5 hours (without foundation creation)

Specifications
Area: 4.65 x 6.40 m
minimum space: 8.15 x 9.40 m (48 m)
Overall height: 2.45 m
platform height: 0.40 / 0.60 / 0.80 m
slides mounting height: 0, 80 m
seat height: 0.90 m
slide inclination: 36 °
slide width: 0.60 m
slide plate thickness: 2.5 mm
weight: 70 kg heaviest individual part
850 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attaching parts
– timber balustrade locust, 120 x 30 mm, fixing between the stainless steel tubes Ø 33,7 x 2 mm
– Sand enclosure from Robinia 95 x 30 mm, planed, chamfered and free from septic branches
– dual stage handrails of stainless steel pipe, Ø 33.7 x 2 mm
– Balcony balustrade made of stainless steel pipe, 0.80 mx 0.70 m
– Megaphone can be rotated horizontally 360 °
– Front flag made of rubber with fabric insert
– Extension stairs with steps made of robinia 160 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, height of the Steps 133 mm
– stair balustrade made of robinia, fastening between stainless steel tubes, Ø 33.7 x 2 mm
– seat made of colored, highly weather-resistant HPL laminate board (red), 20 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
15 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
amount of concrete: 1.08 m³

Free fall height
0.90 m
