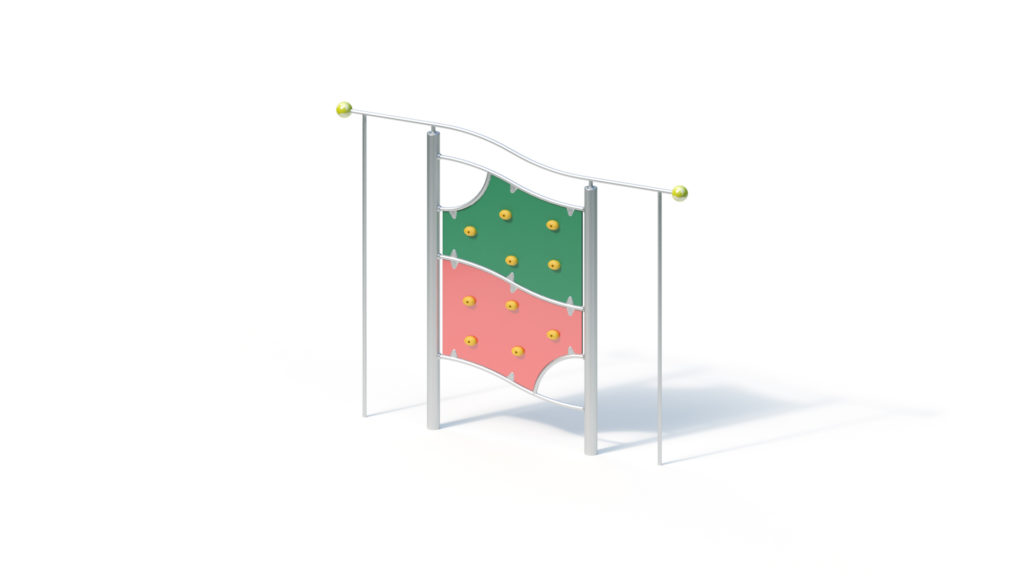

Climbing wall
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
3.56 m
Total Width
0.15 m
Total Height
3.00 m
Minimum Space Length
8.37 m
Minimum Space Width
5.15 m
Minimum Space Height
3.00 m
Heaviest Single Piece
82.00 kg
(Total) Weight
195.00 kg
Free Height of Fall
3.00 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 1.20 x 0.90 x 0.60 m volume: 0.65 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters each 1.5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 0.15 x 3.56 m
Minimum space: 5.15 x 8.37 m (37 m²)
Total height: 3.00 m
Weight: 82 kg, heaviest individual part
195 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 x 3 mm
Attachments
– Klimmstangen stainless steel tube, Ø 38 x 3 mm
– climbing from highly weather-resistant HPL laminate plate, 20 mm, in a frame made of stainless steel tube; with free climbing elements attached on both sides (level of difficulty: difficult)
– hollow sphere Ø 150 mm, powder-coated and stove-enamelled, yellow / RAL 1021
Metal components: stainless steel. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
2 pcs. 1.20 x 0.90 x 0.60 m
Amount of concrete: 1.30 m³
Free fall height
3.00 m
