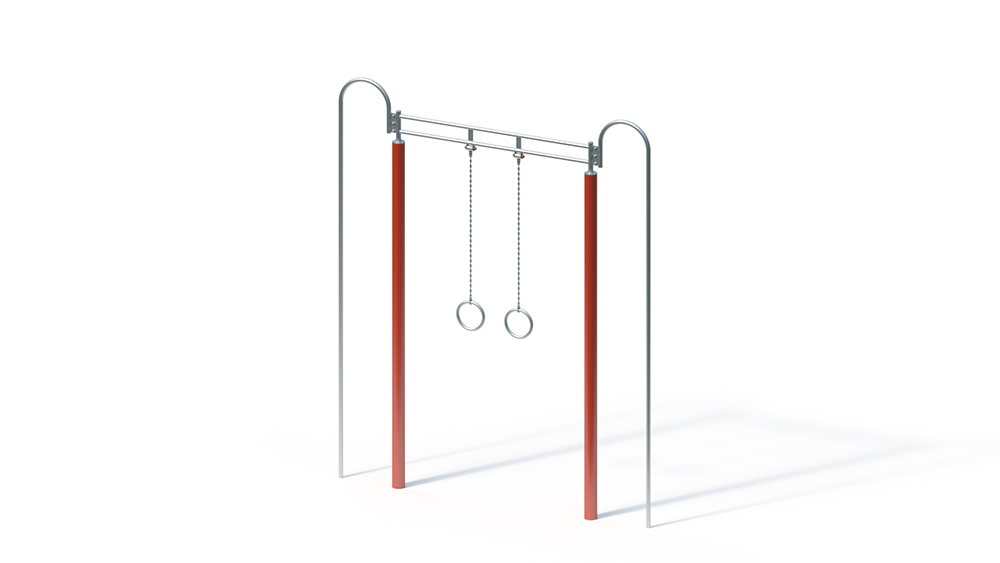

Climbing pole and ring equipment trainer
Key Attributes
Age Group
18+
Area of Use
Trim Paths
Activity
Climb
Suitable for
Suitable for
adult
trim trails etc.
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
3.25 m
Total Width
0.15 m
Total Height
4.00 m
Minimum Space Length
7.85 m
Minimum Space Width
7.15 m
Minimum Space Height
4.00 m
Heaviest Single Piece
55.00 kg
(Total) Weight
170.00 kg
Free Height of Fall
2.70 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 1.00 x 0.80 x 0.60 m volume: 0.48 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Floor area: 0.15 x 3.25 m
Minimum space: 7.15 x 7.85 m (44 m²)
Total height: 4.00 m
Weight: 55 kg heaviest individual part
170 kg in total
Post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated.

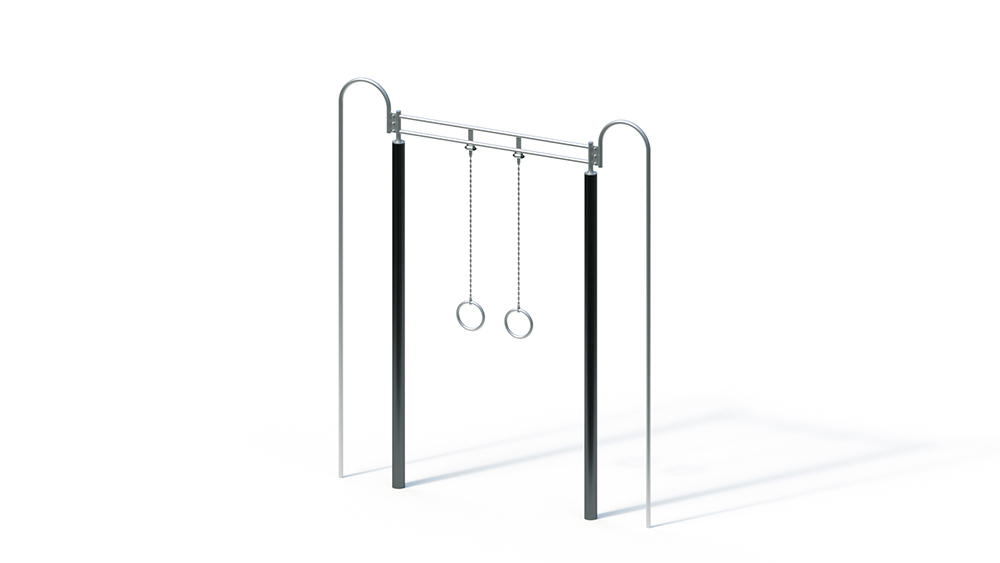

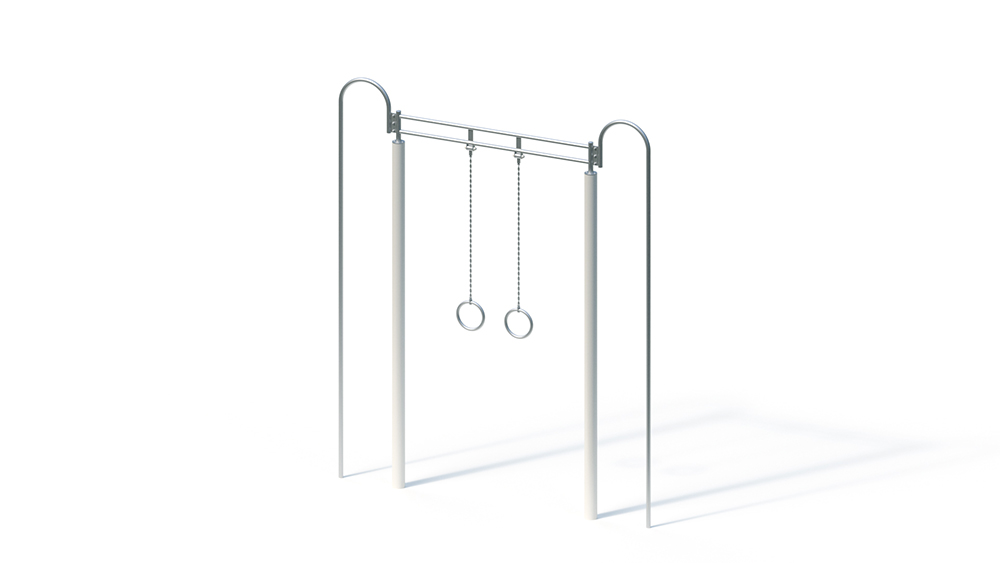

Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005.
Rings: aluminum tube with welded aluminum adapter for chain suspension
Metal
components : stainless steel station signs (see item no. 0-57413-000 and 0-57414-000) can be delivered at an additional cost.
Foundations (on site)
2 pcs. 1.00 x 0.80 x 0.60 m
amount of concrete: 0.96 m³
Free fall
2.70 m
