Climbing facility
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities.
Techincal Specifications
Lifting Device
-
Total Length
3.40 m
Total Width
2.55 m
Total Height
2.45 m
Minimum Space Length
7.45 m
Minimum Space Width
6.60 m
Minimum Space Height
2.45 m
Heaviest Single Piece
55.00 kg
(Total) Weight
285.00 kg
Free Height of Fall
2.32 m
Platform Heights
-
Foundations
Foundation 1
3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 2
6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
5 h
Assembly Details
Assembly time 2 fitters each 5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 2.55 x 3.40 m
Minimum space: 6.60 x 7.45 m (41 m²)
Total height: 2.45 m
Weight: 55 kg, heaviest individual part
285 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 × 3 mm covered with non-detachable post caps made of stainless steel.
Attachment parts
– Climbing pole and climbing rungs made of stainless steel tube , Ø 38 mm
– Climbing net made of Hercules rope on a stainless steel
traverse – Chain ladder with stainless steel rungs

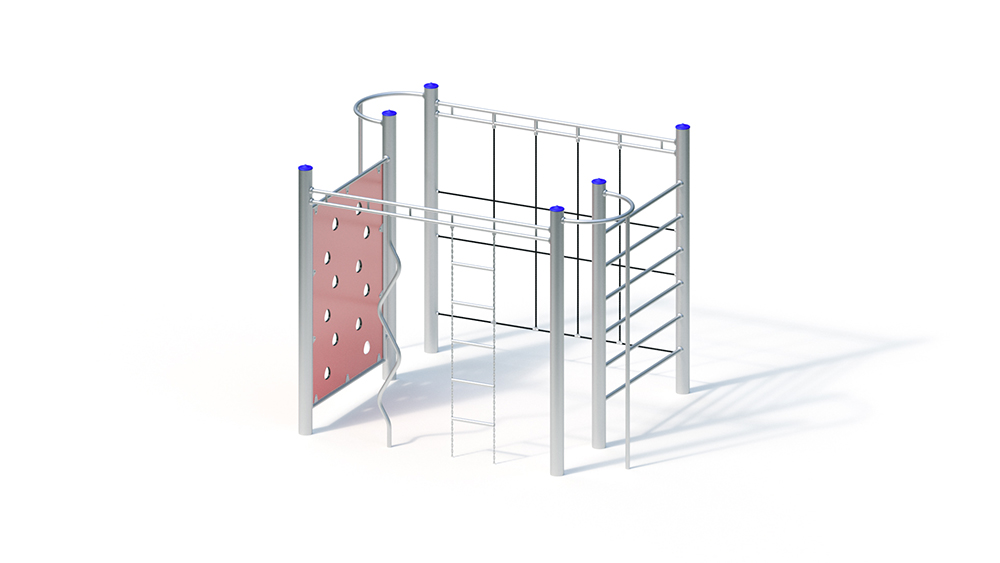

– Climbing wall made of highly weather-resistant HPL laminate board, 20 mm (red), frame made of stainless steel tube, 12 climbing openings
Metal components: stainless steel. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.49 m³
Free fall height
2.32 m
