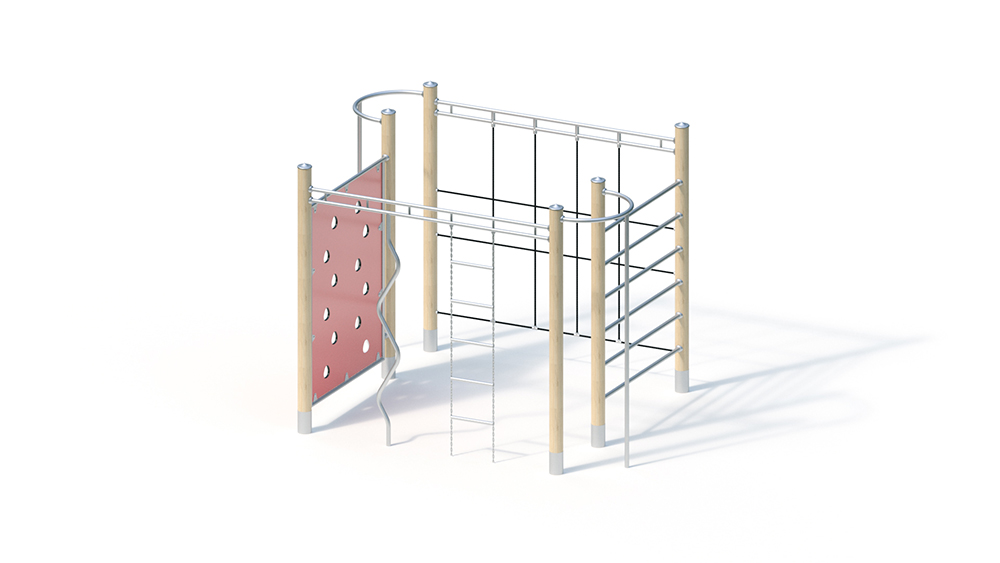

Climbing facility

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities.

Techincal Specifications

Lifting Device


Total Length

3.40 m

Total Width

2.55 m

Total Height

2.45 m

Minimum Space Length

7.45 m

Minimum Space Width

6.60 m

Minimum Space Height

2.45 m

Heaviest Single Piece

55.00 kg

(Total) Weight

285.00 kg

Free Height of Fall

2.32 m

Platform Heights



Foundation 1

3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

5 h

Assembly Details

Assembly time 2 fitters each 5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 2.55 x 3.40 m
Minimum space: 6.60 x 7.45 m (41 m²)
Total height: 2.45 m
Weight: 55 kg, heaviest individual part
285 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts
– Climbing pole and climbing rungs made of stainless steel tube , Ø 38 mm
– Climbing net made of Hercules rope on a stainless steel
traverse – Chain ladder with stainless steel
rungs – Climbing wall made of highly weather-resistant HPL laminate board, 20 mm, frame made of stainless steel tube, 12 climbing openings

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.49 m³

Free fall height
2.32 m
