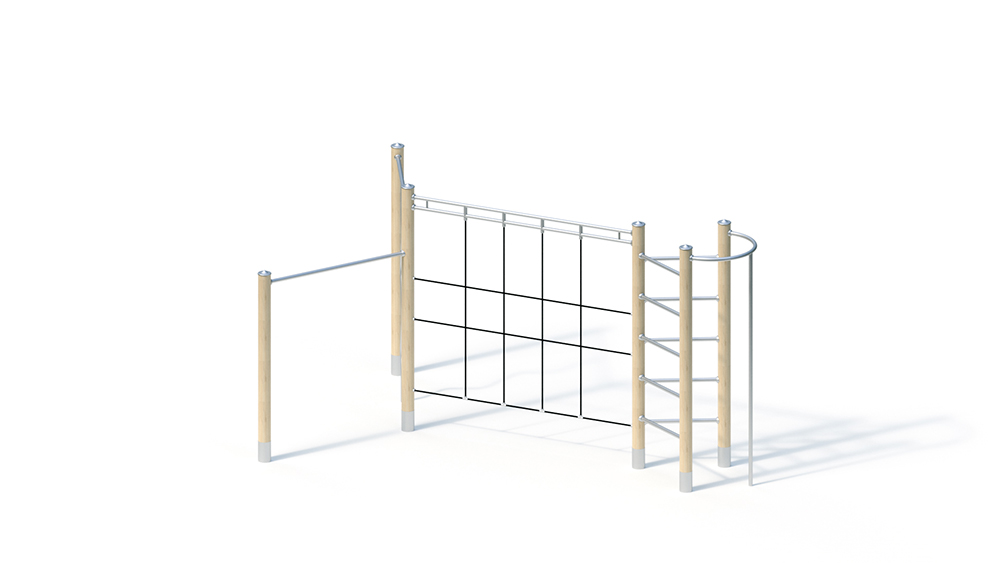

Climbing facility

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds etc.
sports activities.

Techincal Specifications

Lifting Device


Total Length

4.45 m

Total Width

2.90 m

Total Height

2.45 m

Minimum Space Length

8.45 m

Minimum Space Width

6.50 m

Minimum Space Height

2.45 m

Heaviest Single Piece

30.00 kg

(Total) Weight

240.00 kg

Free Height of Fall

2.35 m

Platform Heights



Foundation 1

2 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

6 pieces - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

4 h

Assembly Details

Assembly time 2 fitters each 3.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 2.90 x 4.45 m
Minimum space: 6.50 x 8.45 m (43 m²)
Total height: 2.45 m
Bar height : 1.75 m
Weight: 30 kg Heaviest individual part,
240 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts
– Horizontal bar made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
– Climbing bar and climbing rungs made of stainless steel tube, Ø 38 mm
– Climbing net made of Hercules rope on a stainless steel traverse

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
2 pcs. 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.60 m
Amount of concrete: 0.65 m³

Free fall height
2.35 m
