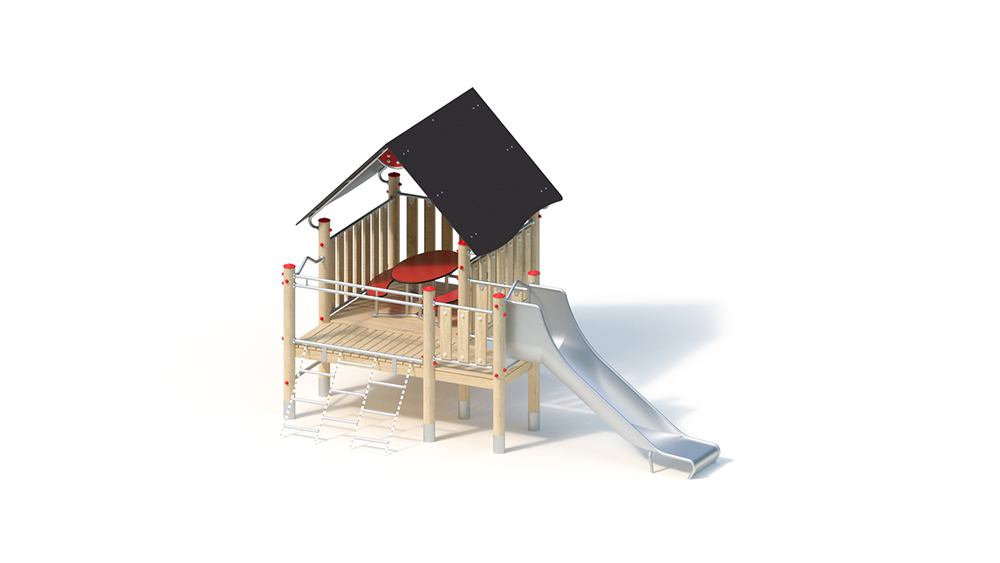

Climbing combination

3+

Public Playgrounds

Slide

Suitable for
children from 3 years of age,
public playgrounds, etc.
Exercise activities.

-

4.85 m

3.25 m

2.95 m

8.40 m

6.30 m

2.95 m

105.00 kg

695.00 kg

0.90 m

0.80 m

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

-

2 pers.

4 h

Assembly time 2 fitters each 4 hours (without foundation creation)

Technical data
Floor area: 3.25 x 4.85 m
Minimum space: 6.30 x 8.40 m (43 m²)
Total height: 2.95 m
Platform height
: 0.80 m
Slide extension height : 0.80 m Sitting height: 0.90 m
Weight: 105 kg heaviest single part
695 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets and a continuous bolt connection.

Attaching parts
– timber balustrade locust, 125 x 30 mm, fixing between the stainless steel tubes Ø 33,7 x 2 mm
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm
– gabled , Inclination 45 °, made of highly weather-resistant HPL laminate board (brown), 13 mm. Attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Seat and table: made of highly weather-resistant HPL laminate board (red), 20 mm
– Climbing rung made of
stainless steel
tube, Ø 38 mm, twist -proof – Chain ladder with stainless steel rungs – Add-on trough slide, 0, 60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll protection against falling over the single-seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.63 m³

Free fall height
0.90 m
