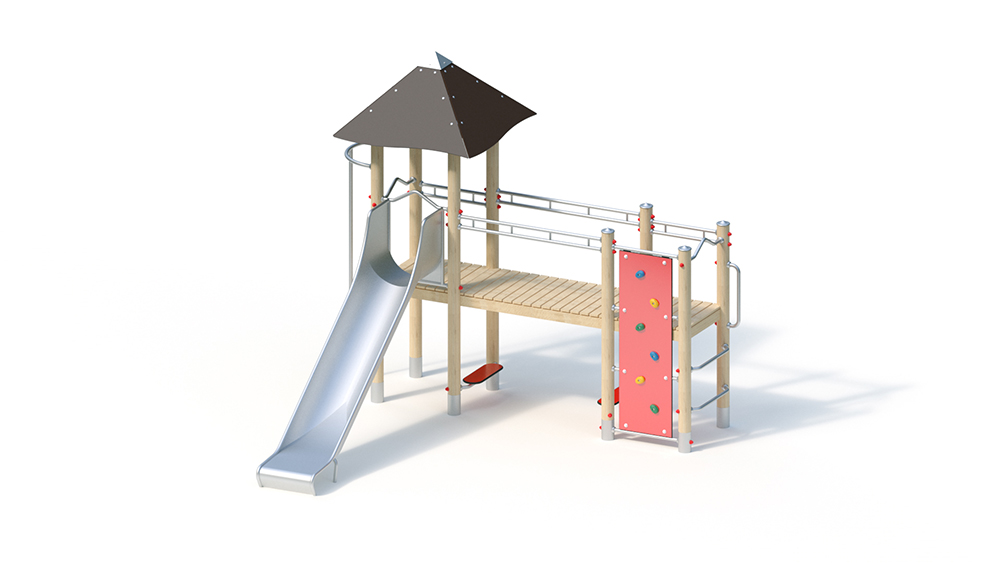

Climbing combination

5+

Public Playgrounds

Slide

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

-

3.90 m

3.90 m

3.40 m

7.10 m

6.90 m

3.40 m

90.00 kg

565.00 kg

1.95 m

1.20 m

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

2 pers.

8 h

Assembly time 2 fitters 8 hours each (without foundation creation)

Technical data
Total height: approx. 3.40 m
Base area: approx. 3.90 x 3.90 m
Minimum space: approx . 6.90 x 7.10 m (34 m²)
Platform height: 1.20 m Seat
height: 0.30 m Slide installation height
: 1.20 m
Single seat height: 1.30 m Slide inclination:
36 ° Slide width:
0.60 m
Slide plate thickness : 2.5 mm

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel. Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with continuous bolt connections.

Attachment parts – Upright railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Vertical climbing pole made of stainless steel tube, Ø 38 x 2 mm
– Climbing rungs (cranked) made of stainless steel tube, Ø 33, 7 x 2 mm
– vertical handle as a climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
– climbing wall made of highly weather-resistant HPL laminate board (red), 20 mm, attachment between stainless steel tubes, with free climbing elements on one side
– seat made of highly weather-resistant HPL -Laminate board (red), 20 mm
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board (brown), 13 mm, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm, with stainless steel hood – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness : 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.30 x 0.30 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.67 m³

Free fall height
1.95 m
