Climbing combination

Key Attributes

Age Group

-+

Area of Use

Public Playgrounds

Activity

Climb

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities.

Techincal Specifications

Lifting Device

-

Total Length

6.05 m

Total Width

0.93 m

Total Height

2.30 m

Minimum Space Length

9.45 m

Minimum Space Width

4.75 m

Minimum Space Height

2.30 m

Heaviest Single Piece

60.00 kg

(Total) Weight

350.00 kg

Free Height of Fall

2.17 m

Platform Heights

-

Foundations

Foundation 1

4 pieces - 1.00 x 0.40 x 0.40 m volume: 0.16 m3

Foundation 2

3 pieces - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 3

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

5 h

Assembly Details

Assembly time 2 fitters each 5 hours (without foundation creation)

Technical Data

Technical data
Total height: 2.30 m
Base area: 0.95 x 6.05 m
Minimum space: 4.75 x 9.45 m (35 m²)
Bar height: 1.35 m
Weight: 60 kg Heaviest individual part,
350 kg in total

Support

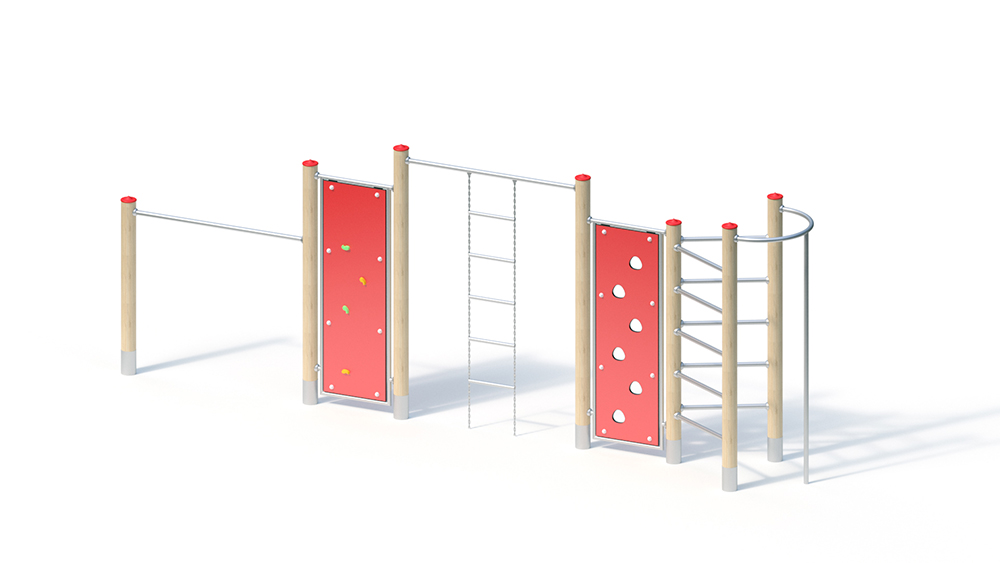

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel. Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts
– Bar made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
– Climbing wall made of highly weather-resistant HPL laminate board (red), 20 mm, frame made of stainless steel
tube, with free
climbing elements on both sides – Chain ladder with stainless steel rungs – Climbing wall made of highly weather-resistant HPL
– Laminate board (red), 20 mm, frame made of stainless steel tube, 6 climbing openings – climbing rungs made of stainless steel tube , Ø 38 mm, twist-proof
– vertical climbing pole made of stainless steel tube , Ø 38 mm

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
1 pc. 0.30 x 0.30 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.60 m
4 pcs. 0.40 x 1.00 x 0.40 m
Amount of concrete: 0.96 m³

Free fall height
2.17 m
