0-23336-703

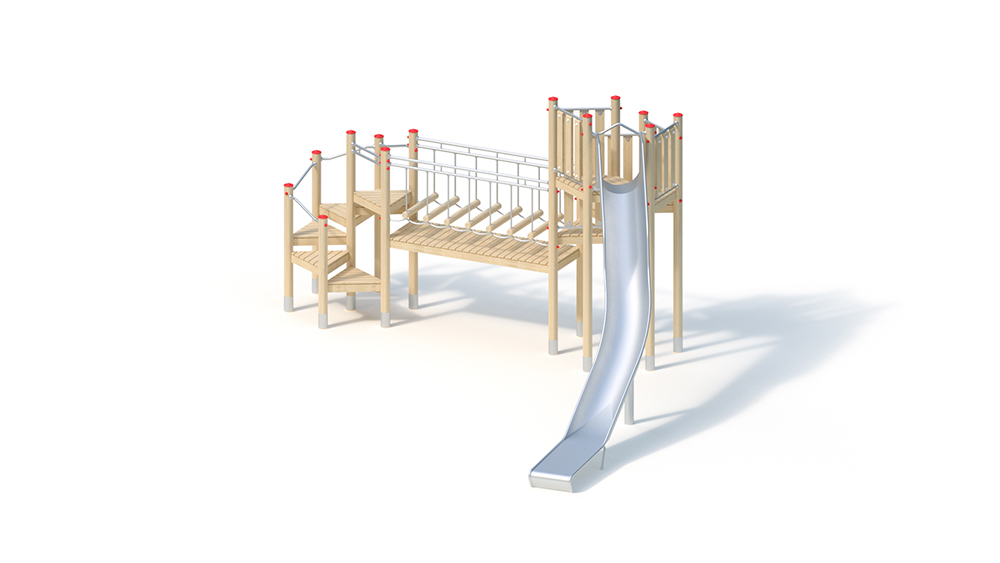

Climbing combination

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children aged 5 and over,
public playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device

Y

Total Length

6.50 m

Total Width

6.15 m

Total Height

3.50 m

Minimum Space Length

10.05 m

Minimum Space Width

9.45 m

Minimum Space Height

4.00 m

Heaviest Single Piece

150.00 kg

(Total) Weight

985.00 kg

Free Height of Fall

2.50 m

Platform Heights

0.60 m, 0.80 m, 1.00 m, 1.20 m, 1.40 m, 1.60 m, 1.80 m, 2.00 m, 2.20 m, 2.40 m

Foundations

Foundation 1

14 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

Foundation 3

1 piece - 0.90 x 0.75 x 0.40 m volume: 0.27 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

14 h

Assembly Details

Installation time 2 fitters 14 hours each, plus lifting gear (without foundation creation)

Technical Data

Technical data
Floor space: 6.15 x 6.50 m
Minimum space: 9.45 x 10.05 m (67 m²)
Total height: 3.50 m
Platform height: 0.60 to 2.40 m
Sitting height: 2.50 m
Weight : 150 kg heaviest single part
985 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Robinia wood balustrade, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Step railing made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Wobble bridge on tandem traverse, Robinia running timbers Ø 100 mm, penetration protection made of robinia wood
– add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll protection against falling over the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (provided by customer)
14 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 0.90 x 0.75 x 0.40 m
amount of concrete: 1.26 m³

Free fall height
2.50 m
